SKU: 01F72 151S1

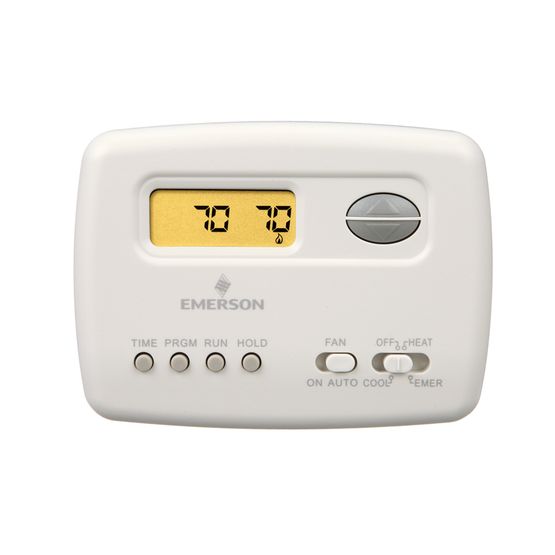

The perfect upgrade from mechanical thermostat available as Heat Pump offering economy and value with proven reliability.
Program Options: Programmable – 5+2 Day
Program Periods Per Day Options: 4
Style: Horizontal
Typical Applications: Gas/Oil/Electric
Terminals: R, C, W2, E, Y, O/B, G, L
3-Wire Zone Valve Connections: No
Millivolt Compatible: No
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: No
Heat Pump Auxiliary Lockout Control – Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Hardwire
Auto Changeover (Heat/Cool): No
Fan Option: Auto, On
Filter Change Reminder: No
Energy Mgt. Recovery/Early Start: Yes
Keypad Lockout: No
Set-Point Temperature Limits: No
Display Type: 1.2 square in.
Backlight: Key Press or Continuous with Common Wire
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
