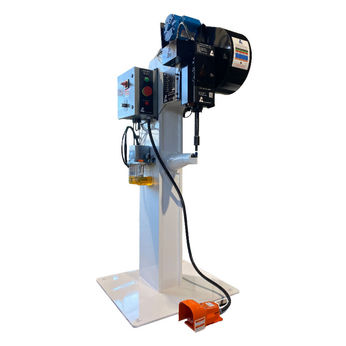

Azimuth GEN III Electric Clinching Machine, 24" throat
Azimuth GEN III Electric Clinching Machine, 24" throat
Brand Azimuth Machinery, Ltd. Length 34 in Phase 3PH (1PH available upon request) Throat Depth 24 in Warranty 5 Years Width 48 in Height 72 in Manufacturer Azimuth Machinery, Ltd. Speed 500 strokes per min Voltage 208V Weight 2,650 lbs How to Video: Easily Change from 24 ga to 16 ga
Fully electric, set up for modification in shop to be used with incoming Single Phase or 3 Phase electrics.
Even though all models come with the easy entry touch screen, it can be bypassed for the one-off clinching needs.
- Actuation Type: Fully electrical (servo motorized) — no air required
- Stroke: Adjustable 1.5’’ stroke; Safety mode, Automatic / Single Stroke
Punch Dies, Springs, and Accessories:
AZ20030AS Clinching die set 30-32G. ORANGE #20030AS
AZ20032AS Clinching die set 24-29G. BLUE #20032AS
AZ20034AS Clinching die set 22-23G. GREY #20034AS
AZ20036AS Clinching die set 20-21G. RED #20036AS
AZ20038AS Clinching die set 18-19G. GREEN #20038AS
AZ20040AS Clinching die set 14-17G. BLACK #20040AS
AZ20616 Clinching Punch 0.190, 3.5″ 24G #20616
AZ20618 Clinching Punch 0.185, 3.5″ 22G #20618
AZ22064 Spring, Narrow Punch – Green (T) #22064
AZ22066 Spring, Narrow Punch – Red (T) #22066
AZ22068 Spring, Narrow Punch – Gold (T) #22068
AZ20254 Clinching Blade Standard #20254
AZ20262 Elastomer Med-Yellow #20262
AZ6-306 Die Block #6-306
AZ6-310.1 Spring Holder, Narrow T H412 #6-310.1
AZ6-305.1 Stripper, Narrow T #6-305.1
$26,900.00
/ EARequest a quote for more detailed pricing including freight and taxes.
