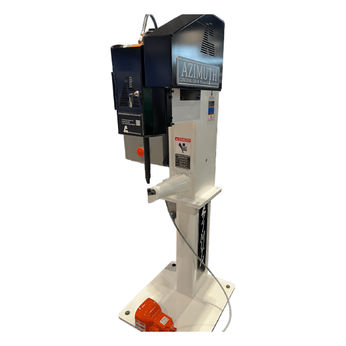

Azimuth GEN E Electric Clinching Machine, 24" throat
Item CodeAZMH624-ESKUH624-E
Azimuth GEN E Electric Clinching Machine, 24" throat
Item CodeAZMH624-ESKUH624-E
Brand Azimuth Machinery, Ltd. Length 34 in Phase 1PH Throat Depth 24 in Warranty 5 Years Width 48 in Height 72 in Manufacturer Azimuth Machinery, Ltd. Speed 350 strokes per minute Voltage 120VAC (optional 480 VAC motor available) Weight 2,500 lbs - Servo motorized – fully electrical
- Standard with 120VAC/1PH (optional 480 VAC motor available)
- 2" stroke opening
- Manual push-button operator interface
- Pendulum Safety Mode setting allows machine to operate within 1/4″ from the bottom (vs. Full Stroke Mode)
- Safety guard
- Comes with 6" riser for install to accommodate standard clinching height
Optional:
- Stainless steel tooling
- Counter & timer for automatic mode
- Automatic Oiling system
- *18” and 32″ throats also available upon request
$17,950.00
/ EAOut of Stock
Request a quote for more detailed pricing including freight and taxes.
