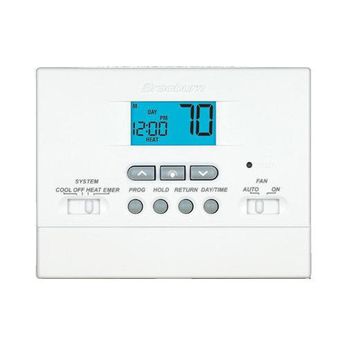

Braeburn 5-2 Day Programmable Thermostat, 2 Heat / 1 Cool
Item CodeTST2200NCBRSKU2200NC
Braeburn 5-2 Day Programmable Thermostat, 2 Heat / 1 Cool
Item CodeTST2200NCBRSKU2200NC
Brand Braeburn® Amperage Draw 1 to 4 A Battery Type (2) AA Alkaline Differential Temperature 0.5, 1 or 2 deg F at 1-Stage, 2, 3, 4, 5 or 6 deg F at 2-Stage Height 3.72 in Manufacturer Braeburn Systems Power Source Battery, Hardwired Stages 2 Heat/1 Cool Temperature Range 45 to 90 deg F Terminal Designation R, O, B, C, Y1, E/W1, G, W2 Warranty 2 Year Limited Accuracy +/-1 deg F Application For conventional systems up to 2-stages of heating and 1-stage of cooling, heat pump systems with 1-compressor and up to 1-auxiliary stage, 250 - 750 mV heating systems Depth 1.12 in Display Type 1.15 sq-in Blue Humidity Rating 5 to 95% RH Mounting Type Horizontal Programs per Week 5-2 day Program Standard/Approvals Energy Star Certified Temperature Rating 14 to 140 deg F Storage Voltage 18 to 30 VAC, 3 VDC Width 4-3/4 in
- 5-2 day separate weekday/weekend programming
- Bright blue display backlight
- Adjustable temperature limits and differential
- Permanent memory retains settings
- Filter check monitor
- Adaptive recovery mode (ARM)
- Separate O and B terminals
- ESD guard electronic circuitry
- Low battery indicator
- Compressor short cycle protection
- Temporary program override
- Programmable extended hold mode
- Front access reset button
- Deg F/C selectable
- 40 - 99 deg F display range
$39.53
/ EAOut of Stock
Request a quote for more detailed pricing including freight and taxes.
Brand Braeburn® Amperage Draw 1 to 4 A Battery Type (2) AA Alkaline Differential Temperature 0.5, 1 or 2 deg F at 1-Stage, 2, 3, 4, 5 or 6 deg F at 2-Stage Height 3.72 in Manufacturer Braeburn Systems Power Source Battery, Hardwired Stages 2 Heat/1 Cool Temperature Range 45 to 90 deg F Terminal Designation R, O, B, C, Y1, E/W1, G, W2 Warranty 2 Year Limited Accuracy +/-1 deg F Application For conventional systems up to 2-stages of heating and 1-stage of cooling, heat pump systems with 1-compressor and up to 1-auxiliary stage, 250 - 750 mV heating systems Depth 1.12 in Display Type 1.15 sq-in Blue Humidity Rating 5 to 95% RH Mounting Type Horizontal Programs per Week 5-2 day Program Standard/Approvals Energy Star Certified Temperature Rating 14 to 140 deg F Storage Voltage 18 to 30 VAC, 3 VDC Width 4-3/4 in
- 5-2 day separate weekday/weekend programming
- Bright blue display backlight
- Adjustable temperature limits and differential
- Permanent memory retains settings
- Filter check monitor
- Adaptive recovery mode (ARM)
- Separate O and B terminals
- ESD guard electronic circuitry
- Low battery indicator
- Compressor short cycle protection
- Temporary program override
- Programmable extended hold mode
- Front access reset button
- Deg F/C selectable
- 40 - 99 deg F display range
