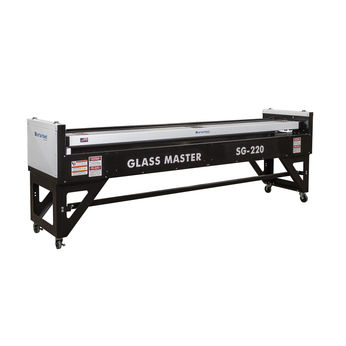

CertainTeed Glass Master SG-220 grooves Duct Board 15-20 times faster than by hand.

Powered by a heavy-duty electric motor, multiple upper and lower drive rollers quickly pass the Duct Board through blades, producing consistent contours and duct dimensions.

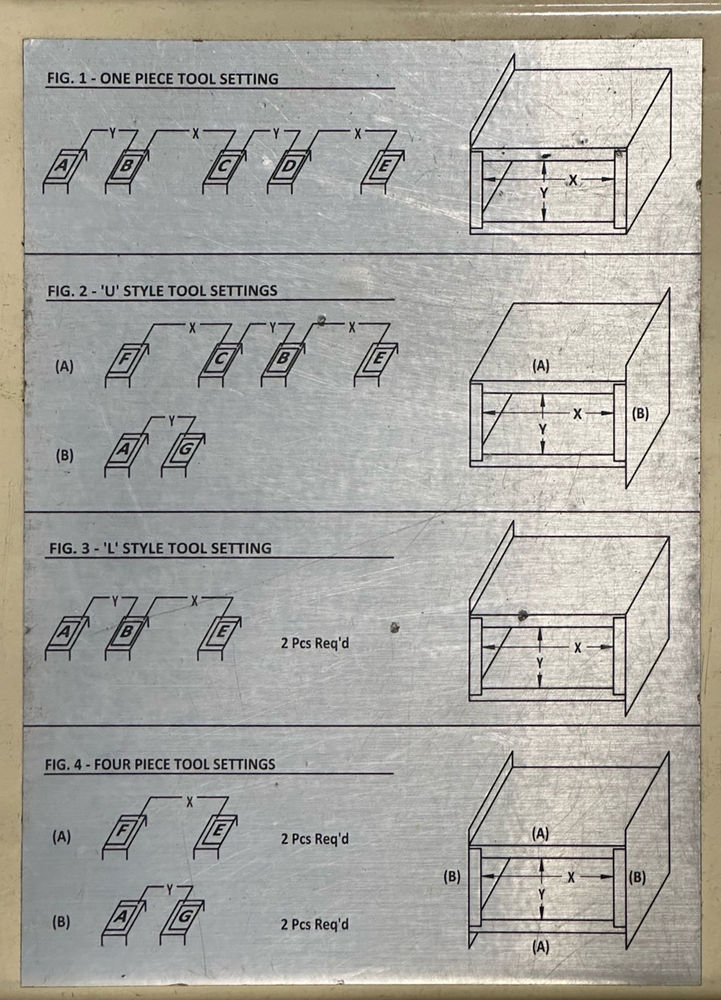

Easily adaptable to groove 1", 1-1/2" and 2" board. Each tool holder has a unique measuring tab for easy and accurate groove spacing. Quick-release clamps allow for rapid positioning.

There are 3 sizes of blades, all 3 are sold separately: GM-BLADE1 (1"), GM-BLADE1.5 (1.5") and GM-BLADE2 (2"). A contractor may only need one size or may need all 3, depending on their needs. However, the machine itself cannot be used without at least one set of blades.

Each size blade comes in a box as a 5-piece set. Each size has 5 separate Styrofoam-packaged pieces shipped in one box labeled A, B, C, D and E.

Ductboard machines do not include blades. Blades are packed and sold separately.

GM-DBMACH-SG220

#645935 Base Machine [10220] - Groove-Master SG-220 Standard Duty Groover [Request a Quote for Pricing] + Manufacturer's Crate Fee

Tool Sets, Blades and Accessories Sold Separately

Tool Sets with Blades (Sold Separately):

GM-TOOLING220-1

#208639 Tool set with 1" blade for SG-220 Ductboard Grooving Machine [11820]

GM-TOOLING220-1.5

#208646 Tool set with 1.5" blade for SG-220 Ductboard Grooving Machine [11860]

GM-TOOLING220-2

#208648 Tool set with 2" blade for SG-220 Ductboard Grooving Machine [11861]

Accessories (Optional):

GM208864

#208864 Duct Board Support Arms (Set of 3) [13090]

Mount on the feed side of the SG-220 and 420 grooving machines and help hold the material level while feeding the grooving machine.

GM208866

#208866 Duct Board Catch Table [13092]

Mobile galvanized steel table for catching sheets of duct board as they exit the grooving machine.

GM208870

#208870 Tool Support Bar (Spare Tool Bar) [13095]

Mounts on the front side of the SG-220 or SG-420 machine and is used to store tools when not in use.

Replacement Blades (Blades Only, No Tooling):

GM-BLADE220-1

1" Replacement Blades A, B, C, D, E #208850 (blades only, no tooling) [12755]

GM-BLADE220-1.5

1.5" Replacement Blades A, B, C, D, E #208854 (blades only, no tooling) [12775]

GM-BLADE220-2

2" Replacement Blades A, B, C, D, E #208858 (blades only, no tooling) [12790]

SG-220 Ductboard Machine adjusts depending on the thickness of the ductboard being cut. Knobs on both ends of the machine can be turned with a wrench to adjust to the respective height.
