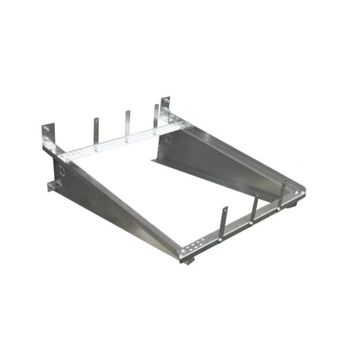

To support condenser units, heat pumps, and other equipment, the Air Brace is particularly useful in residential or multi-family dwelling applications where flooding, snowfall, mud, and steep grades are a concern. It is designed to mount the unit directly to the bracket (without a concrete pad). Three sizes are available: 36”, 45”, and 55”. These sizes refer to the arm length perpendicular to the wall the brace is attached to. These arms cannot be cut down; however, the width for all of them is adjustable down to 20”.

• Hurricane engineered and tested
• Certified for lateral and uplift wind pressure
• Raised seal Engineering drawing available
• Meets Florida building codes
• Elevated design improves air flow, reduces blockage, and helps protect units from storm surge
• Eliminates unit damage caused by lawn mowers and equipment
• No ground leveling or final grade needed for installation
• Simplifies equipment inspection and service
• Heavy duty laser cut 16-gauge galvanized or 304 stainless steel
• Union made in the U.S.
