The same speed, efficiency, and aesthetics gained in hanging Spiral Duct can be applied to Rectangular Duct with the Duro Dyne KV12 Bracket and CL Cable Locks used in tandem. Attach the KV bracket to the duct, and then thread the wire rope into the entry hole at the top of the bracket, then through the cable lock to engage the wire rope and secure the duct.

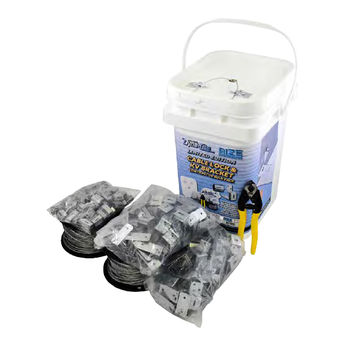

Bulk Pack Includes:

• 2 Rolls of Wire Rope
• 100 CL12 Cable Locks
• 100 KV12 Bracket Assemblies
• 1 Cable Cutter
• 1 Self Dispensing Lid with dual cable fasteners

***NOT PACKAGED FOR INDIVIDUAL SALE***

The KV Bracket Assembly enhances the Dyna-Tite suspension system by the addition of an integral bracket, which fastens the cable lock to the duct with sheet metal screws. once the KV Bracket Assembly is attached to the duct, the wire rope “drop” is passed into the entry hole at the top of the bracket, through the cable lock, and out the exit hole at the bottom. The locking teeth inside the cable lock engage the wire rope and secure the ductwork in place. When used with WC3-CL12 Wire Rope, there is a working load limit of 150 lbs. When used with WC2-CL6 Wire Rope, there is aworking load load limit of 75 lbs. The KV Bracket is also available in kits with Looped Cable.

*The KV Bracket must be hung at a 90 degree angle to the suspension point.
