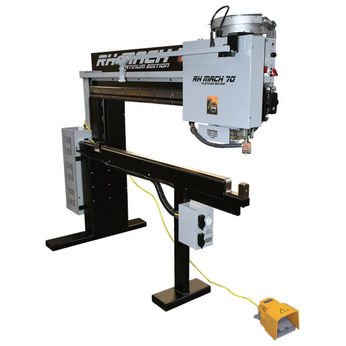

Rolling Head Automatic Pinspotter
Rolling Head Automatic Pinspotter
Brand Duro Dyne® Amperage Draw 60 Amps Manufacturer Duro Dyne Pin Length Up to 4″ (Auto ≤2″; 3–4″ = Manual Feed) Air Requirments 80 psi Capacity 18 Ga Phase 1PH Voltage 230V The Platinum Edition RH Mach 70 Pinspotter features a more efficient transformer that provides a wider range of welding capabilities. The Heavy Duty Vibrator Bowl and base weld pins up to 2’’, and the optional manual feed accommodates pins up to 4’’ on 4’’ insulation. A floating upper weld tip and an optional lift kit are among some of the improvements to this Pinspotter. The RH Mach 70 also features a notch on the support bar to easily accommodate TDC/TDF duct, and the ability to move the trolley instead of the ductwork minimizes material handling. An auxilliary gun & ground cable box has been added to offer the ability to convert this machine to a handheld pinspotter (10ft gun & ground cable sold separately).
Optional:
#17281 RH HAND GUN & GRND SET
$24,500.00
/ EARequest a quote for more detailed pricing including freight and taxes.
Brand Duro Dyne® Amperage Draw 60 Amps Manufacturer Duro Dyne Pin Length Up to 4″ (Auto ≤2″; 3–4″ = Manual Feed) Air Requirments 80 psi Capacity 18 Ga Phase 1PH Voltage 230V The Platinum Edition RH Mach 70 Pinspotter features a more efficient transformer that provides a wider range of welding capabilities. The Heavy Duty Vibrator Bowl and base weld pins up to 2’’, and the optional manual feed accommodates pins up to 4’’ on 4’’ insulation. A floating upper weld tip and an optional lift kit are among some of the improvements to this Pinspotter. The RH Mach 70 also features a notch on the support bar to easily accommodate TDC/TDF duct, and the ability to move the trolley instead of the ductwork minimizes material handling. An auxilliary gun & ground cable box has been added to offer the ability to convert this machine to a handheld pinspotter (10ft gun & ground cable sold separately).
Optional:
#17281 RH HAND GUN & GRND SET
