Compact Clamp Meter
Brand Fieldpiece Country USA Counts 4000 Electrical Ratings 400 A Height 205.5 mm Length 45.1 mm Operating Temperature 32 to 122 deg F Resistance 40 mOhm Standard/Approvals cULus Listed|CE Certified|EN61010-1|EN61010-2-032|EN61010-2-033|EMC EN61326-1 Width 67.4 mm AC Response 100 ms Country of Origin TW Display Type LED Frequency Rating 50 to 500 Hz Includes SC260 Meter, ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath, ATB1 Wrap Tab Type K Thermocouple, Velcro Strap, 9 VDC Battery, ANC4 Padded Case Manufacturer Fieldpiece Instruments Power Source Alkaline Battery Safety Rating 600 V Type Compact

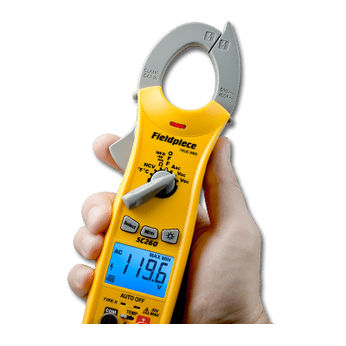

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements. The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.
- True RMS
- Bright backlight
- Non-contact voltage alert
- 40 Mohm with 0.01 resolution
- Diode test
- Low battery indicator
- Hi-voltage warning
Call For Pricing
Request a quote for more detailed pricing including freight and taxes.
Brand Fieldpiece Country USA Counts 4000 Electrical Ratings 400 A Height 205.5 mm Length 45.1 mm Operating Temperature 32 to 122 deg F Resistance 40 mOhm Standard/Approvals cULus Listed|CE Certified|EN61010-1|EN61010-2-032|EN61010-2-033|EMC EN61326-1 Width 67.4 mm AC Response 100 ms Country of Origin TW Display Type LED Frequency Rating 50 to 500 Hz Includes SC260 Meter, ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath, ATB1 Wrap Tab Type K Thermocouple, Velcro Strap, 9 VDC Battery, ANC4 Padded Case Manufacturer Fieldpiece Instruments Power Source Alkaline Battery Safety Rating 600 V Type Compact
The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements. The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.
- True RMS
- Bright backlight
- Non-contact voltage alert
- 40 Mohm with 0.01 resolution
- Diode test
- Low battery indicator
- Hi-voltage warning
