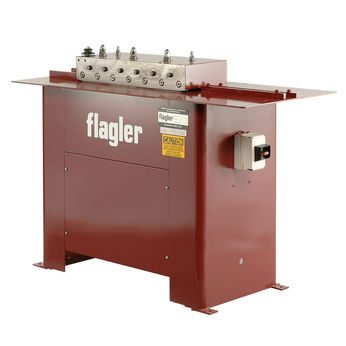

Flagler 18 Ga Heavy Duty Pittsburgh Model
Brand Flagler Dimensions 56" L x 24" W x 41" H Manufacturer The Flagler Corp Pocket/Material 3/8" (1-1/8") Speed 45 FPM Voltage 230V Capacity 18 to 26 Ga Horsepower 1-1/2 HP Phase 3PH Shipping Weight 720 lbs Stations 7 - 7 Station model that uses 1-1/8” of material to rollform the 3/8” Female Pitts Pocket inboard at 45 ft / min and has one available outboard side for additional forming rolls. Capacity 18-24 ga
- Mates with 1/4″ or 5/16″ Right Angle Flange
The most common rollformer in all of HVAC Duct Fab is the 20 ga capacity Pittsburgh Machine. But jobs occasionally specify 18 ga for some of the larger or high pressure portions. If a shop does not have a “heavy” gauge Pittsburgh Machine, they are forced to weld the longitudinal seams—which can increase labor costs significantly.
The Model 18 Pittsburgh is a 7 station machine that uses 1-1/8” of material to rollform the 3/8” Female Pitts Pocket inboard at 45 ft / min and has one available outboard side for additional forming rolls. Capacity 18-24 ga*
Mates with 1/4″ or 5/16″ Right Angle Flange ( Male Pittsburgh) to form the Pittsburgh Lock
Optional Outboard / Auxiliary Rollsets (choice of one):
3/8″ Acme Lock / Double Seam Rolls (20-26 gauge) #17-150
1/2″ Acme Lock / Double Seam Rolls (16-20 gauge) #17-100
¼” Right Angle Flange Rolls (20-26 gauge) #17-400-20
¼” Right Angle Flange Rolls (16-20 gauge) #17-400-16 — FL-P18-RAF
FL-4IN1 5/8″ Tap In 4 in 1 rollset (22-28 gauge) #17-300
1-1/8″ Drive Cleat Rolls (20-28 gauge) #17-200
FL-P20HS-7-HR —1/2″ x 180° Hem Rolls (20‐26 Ga.) #17-800 | Video: Hem Rolls on 7 Station Flagler
1/2″ Male Button Lock Tooling (for use as crossover set up) #62-000-M7
5/16″ 20 gauge Female Pittsburgh Rolls (for dual Pitts) #17-700
Short Parts Feeder for Auxiliary Rolls #16-500-7
Arc welded heavy duty Steel frame with heavy top plate. Double matched “V” belts are driven by a 2-hp motor on standard 3-phase power. 3-piece shaft design virtually eliminates the high maintenance costs associated with other brands single shaft type. Machine is two sided; the other outboard side is available for optional rolls including Drive Cleat, Double Seam or 3-in-1 Rolls.
Drive: Double V Belt
$15,120.00
/ EARequest a quote for more detailed pricing including freight and taxes.
