Flagler 20 Ga Pittsburgh Machine
Flagler 20 Ga Pittsburgh Machine

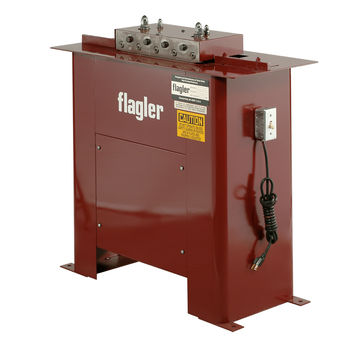

Brand Flagler Dimensions 36" L x 16-1/2" W 37" H Manufacturer The Flagler Corp Pocket/Material 5/16" (~1") Speed 23 FPM Voltage 115V Capacity 20 to 26 Ga Horsepower 3/4 HP Phase 1PH Shipping Weight 320 lbs Stations 5 One of the most common machines in any HVAC Duct fabrication shop is the standard 20 ga Capacity Pittsburgh machine.
This 5 station rollformer operates off of 115 Volt Single Phase power and uses 1″ of the metal edge to roll form the small female Pittsburgh seam with a pocket depth of 5/16″ at a speed of 23 feet per minute. Comes standard with Pittsburgh rolls built in on Left side for a Right-To-Left work flow. The Right side of machine is empty and can be equipped with one of three rollset options, the Drive Cleat, Acme Lock (Double Seam) or the Right angle Male Pittsburgh flange.
Capacity: 20-26 ga Galvanized / .032 Aluminum
Pittsburgh Pocket: 5/16”
Allowance for Lock: 1” to 15/16”
Optional Rolls and Attachments:
FL-P20-RAF 1/4″ Right Angle Flange rolls (20-26 Ga) #14-300
FL-P20-DS Double Seam Rolls for 20 Ga Flagler #14-100
FL-P20-FA Flanger Follower Attachment #15-000 for 20 Ga. Flagler Pitts
FL-P20-DC Drive Cleat Rolls #14-200
RP-FL20 20 ga Opening Roll (#14-069)
Optional Flanging Attachment (FL-P20-FA)
$7,460.00
/ EARequest a quote for more detailed pricing including freight and taxes.
