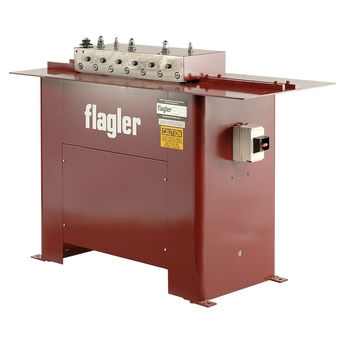

Flagler 20 Ga High Speed Pittsburgh Machine — 7 Station
Brand Flagler Dimensions 36" L x 16-1/2" W 37" H Manufacturer The Flagler Corp Pocket/Material 5/16" (~1") Speed 100 FPM Voltage 230V Capacity 20 to 26 Ga Horsepower 3 HP Phase 3PH Shipping Weight 450 lbs Stations 7 Some outboard rollsets require 7 stations, so with this in mind, Flagler designed a Model HS7 (high speed, 7 stations) that runs the same high speed Pittsburgh on one side but does it over 7 stations instead of 6. the purpose of the 7 station High Speed Pitts is because their are some Popular outboard rollsets that require 7 stations to run their respective profile (and thus would not work on a 6 station High Speed)
The most popular of the Outboard Rollsets for the HS7 is the #17-300 4-in-1 Rolls . This 4 step entrance gauge runs 5/8″ Outside Tap, End Cap , 1/2″ Right Angle and 1/4″ Right angle. Another popular rollset is the #17-800 Hem Rolls that form a 1/2″ closed hem at 180 degrees.
Capacity: 20-26 ga Galvanized / .032 Aluminum
Depth of Pocket in Seam: 5/16”
Sheet Edge used to form profile: 1″
The amperage draw on a Flagler 20ga High Speed Pittsburgh is approx. 13 amps at 230 volts.
Outboard / Auxiliary Rollsets (choice of one):
3/8″ Acme Lock / Double Seam Rolls (20-26 gauge) #17-150
1/2″ Acme Lock / Double Seam Rolls (16-20 gauge) #17-100
¼” Right Angle Flange Rolls (20-26 gauge) #17-400-20
¼” Right Angle Flange Rolls (16-20 gauge) #17-400-16
FL-4IN1 5/8″ Tap In 4 in 1 rollset (22-28 gauge) #17-300
1-1/8″ Drive Cleat Rolls (20-28 gauge) #17-200
FL-P20HS-7-HR —1/2″ x 180° Hem Rolls (20‐26 Ga.) #17-800 | Video: Hem Rolls on 7 Station Flagler
1/2″ Male Button Lock Tooling (for use as crossover set up) #62-000-M7
5/16″ 20 gauge Female Pittsburgh Rolls (for dual Pitts) #17-700
Short Parts Feeder for Auxiliary Rolls #16-500-7
*Tap in rollset does Outside Tap, End Cap profile, ½” large male Pitts, ¼” small male pitts
20 ga High Speed Pittsburgh Machine forms the female seam inboard, male Pittsburgh outboard (male Pittsburgh not included in price of machine)
$15,100.00
/ EARequest a quote for more detailed pricing including freight and taxes.
