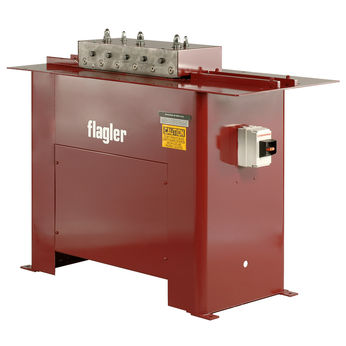

Flagler 20 Ga High Speed Pittsburgh Machine — 6 Station
Flagler 20 Ga High Speed Pittsburgh Machine — 6 Station
Brand Flagler Dimensions 36" L x 16-1/2" W 37" H Horsepower 3 HP Phase 3PH Stations 6 Shipping Weight 450 lbs Manufacturer The Flagler Corp Capacity 20 to 26 Ga Voltage 230V Speed 100 FPM Pocket/Material 5/16" (~1") This 6 station machine uses 1” of 26 to 20 gauge Galvanized to rollform the 5/16” Female Pittsburgh Pocket Seam left outboard at 100 ft / minute moving in a right to left flow. With Double “V” belts driven by a 3HP motor on standard 3 phase power and built on the same frame as Flagler’s 16 Gauge heavy duty machine, this is the most robust “small Pittsburgh” rollformer on the market. This machine has a Right outboard side (left to right flow) with empty auxiliary shafts onto which one can install the 1/4″ Right Angle Flange Rolls (aka Male Pittsburgh) or Double Seam or Drive Cleat Rolls.
Depth of Pocket in Seam: 5/16”
Sheet Edge used to form profile: 1"
The amperage draw on a Flagler 20 ga High Speed Pittsburgh is approx. 13 amps at 230 volts.
Drive: Double V Belt
Work Height: 32-5/8"
Optional Auxiliary Rollsets (choice of one):
3/8″ Acme Lock/Double Seam Rolls (20-26 Ga.) #16-100
1-1/8″ Drive Cleat Rolls (20-26 Ga.) #16-200
FL-P20HS-RAF ¼” Male Pitts/Right Angle Flange Rolls (20-26 Ga.) #16-300
Short Parts Feeder for Auxiliary Rolls #16-500
20 ga High Speed Pittsburgh Machine forms the female seam inboard, male Pittsburgh outboard (male Pittsburgh not included in price of machine)
$12,400.00
/ EARequest a quote for more detailed pricing including freight and taxes.
