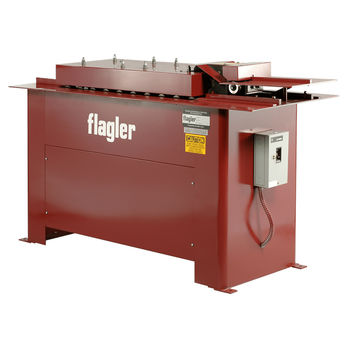

FLAGLER Quadformer with S&D Rolls 3Ph
FLAGLER Quadformer with S&D Rolls 3Ph
Brand Flagler Manufacturer The Flagler Corp Speed 100 FPM Amperage Draw 16 Amps Phase 3PH Voltage 230V 10 station rollformer with Flat S and Drive Cleat rolls built inboard and 2 outboard roll set profile available, pulls approx 16 amps, standard 230 Volt 3 Phase Electrics. Single Phase Electrics available as special order
With (10) Forming Stations, the Flagler Quadformer comes standard with “S” and Drive Cleat on the inboard forming positions. Machine has two Outboard Auxiliary Shafts which allow for your choice of Male or Female Button Lock, or Pittsburgh and 3-in-1 Rolls. The optional Quad Cutter attachment allows the shop to use up drop for their S & Drive Cleats while also avoiding having to pre-cut widths of 2.125″ and 3.625″
Slitting Attachment (optional):
FL-Q-CSA = Factory List Price: $4,400.00 USD Quad-Cutter Slitting Attachment #23-200 (Video Demo)
Outboard Rollsets (pick two):
FL-QUAD-FBL 1/2″ Female Buttonlock Rolls (20-30 gauge) #62-000-F [#30-067] $3,240.00
FL-QUAD-MBL 1/2″ Male Buttonlock Rolls (20-30 gauge) #62-000-M [#30-077] $3,260.00
FL-Q-38P 3/8″ Female Pittsburgh Rolls (18-24 gauge) #55-000 $3,650.00
FL-Q-516P 5/16″ Female Pittsburgh Rolls (20-26 gauge) #54-000 $3,550.00
FL-QUAD-RAF 1/4″ Male Pitts/Right Angle Flange Rolls (20-26 gauge) #60-000 $2,700.00
FL-Q-3N1 Flagler 3in1 (5/8″ Tap) Rolls for Quad (22-28 gauge) #50-000 $3,710.00
FL-Q-38DSR 3/8″ Double Seam Rolls/Acme Lock (20-26 gauge) #57-000 $2,700.00
FL-Q-12DSR 1/2″ Double Seam Rolls /Acme Lock for Quad (16-20 gauge) #58-000 $2,700.00
1/2″ x 180° Hem Rolls (20‐26 gauge) #64-000 $3,700.00
Tap in 3-in-1 rollset includes: Outside Tap, End Cap profile, ½” Right Angle (22-28 gauge) #51-000 $3,710.00
4-in-1 Entrance Guide available upon request—usually set for the ¼” right angle Male Pittsburgh
Existing units can be converted—pricing available upon request.
All Quadformers come standard as 3 Phase. Single Phase Model available upon request: FL-QUAD-1PH FLAGLER Quadformer w/S&D rolls 1Ph
Prices effective 10-1-26
$21,210.00
/ EARequest a quote for more detailed pricing including freight and taxes.
