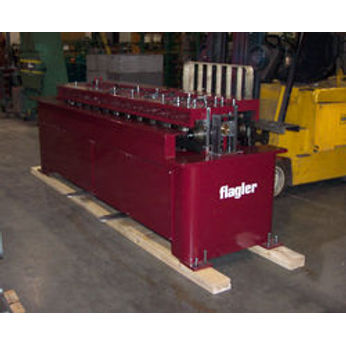

Flagler Standing "S" Cleat Machine #35-500 complete with 1" Standing "S" in center position, (2) outboard tooling sides (230 Volt/3 Phase)
Flagler Standing "S" Cleat Machine #35-500 complete with 1" Standing "S" in center position, (2) outboard tooling sides (230 Volt/3 Phase)
Brand Flagler Horsepower 7-1/2 HP Phase 3PH Voltage 230V Dimensions 130″ L x 32″ W x 48″ H Manufacturer The Flagler Corp Speed Approx. 60 fpm (Optional up to 100 fpm) Weight Approx. 3,500 lbs 1” Standing “S” Cleat Rolls (20-28 ga.) in the center position, dual auxiliary shafts for (2) sets of tooling
Optional Outboard Rollsets (Pricing available upon request):
DF1 Rolls (18-26 Ga.) with Short Parts Feeder
DF1 Clip Rolls (20-26 Ga.)
1-1/2″ Standing Seam Rolls (16-20 Ga.)
1-1/4″ Standing Seam Rolls (18-24 Ga.)
1-1/8″ Tap-In (3 in 1) (18-24 Ga.)
1/2″ Female Pittsburgh Rolls (16-22 Ga.)
3/8″ Female Pittsburgh Rolls (18-24 Ga.)
5/16″ Pittsburgh Rolls (20-26 Ga.)
Optional:
Variable Drive Panel (0-100 fpm)
Short Parts Feeder for Auxiliary Rolls
Drive: #60 Roller Chain
Base: Arc Welded Steel. Heavy top plate
Call For Pricing
Request a quote for more detailed pricing including freight and taxes.
