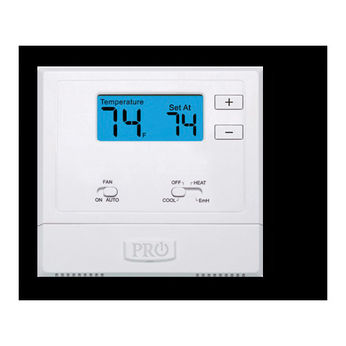

PRO1 T-STAT T621-2 2H/1C NP HP or 1H/1C
Item CodeTST6212PSKUT621-2
Brand Pro1® Control Range 45 to 90 deg F Depth 1.1 in Domestic/Import Import Height 4.4 in Manufacturer Pro1® Number of Stages 3 Stages Cool 1 System Switching Heat/Cool/Off/Emergency Thermostat Type Non-Programmable Width 4.7 in Color White Country USA Display Type LCD Fan Switching Auto/On Humidity Range 90% Non-Condensing Mounting Type Junction Box/Wall Power Source Battery/Hardwired Stages Heat 2 Terminal Designations R, C, Y, W2, E, G, B, O Voltage 24 VAC
- 2 sq-in display
- Blue backlight
- Glow in the dark light button
- Electric or gas configurable
- Separate B and O terminals
- Room temperature calibration adjustments
- Separate heating and cooling swing (cycle rate) adjustments
- 5 minute compressor delay protection (selectable on or off)
- Filter change indicator (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- 41 to 95 deg F display range of temperature
- 1 A per terminal, 1.5 A maximum all terminals combined load rating
- +/- 1 deg F display accuracy
- Heating is adjustable from 0.2 to 2 deg F
- Cooling is adjustable from 0.2 to 2 deg F
- 18 to 30 VAC, NEC class II, 50/60 Hz for hardwire
- Battery power from 2 AA alkaline energizer batteries
- 32 to 105 deg F ambient operating temperature
$70.87
/ EAIn Stock
Request a quote for more detailed pricing including freight and taxes.
