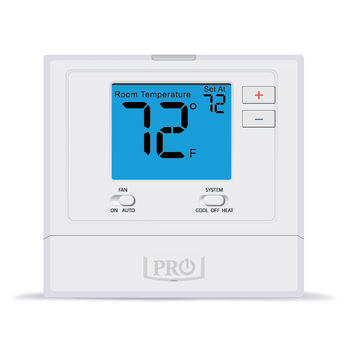

PRO1 T-STAT T701 1H/1C NP
Item CodeTST701PSKUT701
Brand Pro1® Color Black Country of Origin CN Differential 0.2 to 2 deg F Domestic/Import Import Manufacturer Pro1® Number of Stages 2 Power Source Battery/Hardwired Stages Heat 1 Terminal Designations RH, RC, C, Y, W, G, B, O Voltage 24 VAC Application Residential Applications Country USA Depth 1.1 in Display Type 4 sq-in LCD Height 4.4 in Mounting Type Junction Box/Wall Number of Switches 2 Stages Cool 1 Switch Type Relay Thermostat Type Non-Programmable Width 4.7 in
- 4 sq-in display, blue back light glow in the dark light button, easy access battery compartment
- Electric or gas configurable, separate heating and cooling swing (cycle rate) adjustments, room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off), simple private label badge system
- Easy wire color coded terminal blocks, universal sub-base, Mount on wall or junction box
- 32 to 105 deg F ambient operating temperature operating temperature operating temperature operating temperature
- Temperature ranges 41 to 95 deg F display range of temperature, 44 to 90 deg F control range of temperature
- Humidity range - operating 90%, non-condensing maximum
- +/- 1 deg F display accuracy, 1 A terminal, 1.5 a maximum all terminals combined load rating
- 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire), battery power from 2 AA alkaline energizer batteries
$57.20
/ EAIn Stock
Request a quote for more detailed pricing including freight and taxes.
Brand Pro1® Color Black Country of Origin CN Differential 0.2 to 2 deg F Domestic/Import Import Manufacturer Pro1® Number of Stages 2 Power Source Battery/Hardwired Stages Heat 1 Terminal Designations RH, RC, C, Y, W, G, B, O Voltage 24 VAC Application Residential Applications Country USA Depth 1.1 in Display Type 4 sq-in LCD Height 4.4 in Mounting Type Junction Box/Wall Number of Switches 2 Stages Cool 1 Switch Type Relay Thermostat Type Non-Programmable Width 4.7 in
- 4 sq-in display, blue back light glow in the dark light button, easy access battery compartment
- Electric or gas configurable, separate heating and cooling swing (cycle rate) adjustments, room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off), simple private label badge system
- Easy wire color coded terminal blocks, universal sub-base, Mount on wall or junction box
- 32 to 105 deg F ambient operating temperature operating temperature operating temperature operating temperature
- Temperature ranges 41 to 95 deg F display range of temperature, 44 to 90 deg F control range of temperature
- Humidity range - operating 90%, non-condensing maximum
- +/- 1 deg F display accuracy, 1 A terminal, 1.5 a maximum all terminals combined load rating
- 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire), battery power from 2 AA alkaline energizer batteries
