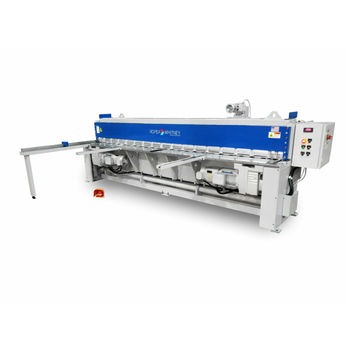

Mechanical Shear Pro Package
Brand Roper Whitney® Manufacturer Roper Whitney Weight 9200 lbs Dimensions 48 in x 72 in x 144 in Speed 45 strokes per min The PX1010 has a standard 30 powered back gauge system available. The screw-driven back gauge provides quick, accurate cuts. The operator simply pushes a button to drive the back gauge to the proper position and can fine tune the dimension using the hand wheel.
The PX Series shears standard features include four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined T-Slotted table. The table also has a hand well with dual inch/metric inlaid bed scales. The PX Series incorporates non-metallic ram gibs and low maintenance garlock bearings.
To enhance productivity, the PX series can be delivered in a Pro Package configuration. The Pro Package includes: 5 Squaring Arm, Two Front Support Arms, Rear Drop Air Operated Sheet Support System and the 30 Front Operated Powered Back gauge with Digital Readout.Maximum shearing capacity, mild steel rated materials at 80,000 tensile/ 44,000 yield: 10 ga/ 3,5 mm
- Maximum shearing capacity, stainless steel rated materials at 90,000 tensile/ 55,000 yield: 14 ga/ 2,0 mm
- Maximum cutting length: 121 in/ 3074 mm
- Back gauge range: 30 in/ 762 mm
- Number of hold-down feet: 16
- Drive motor – 230/460v, 3-phase, 60 Hz: 7.5 hp x 2
- Back gauge motor – 230/460v, 3-phase, 60 Hz (if equipped): 1/4 hp
- Floor space, gauges in position: 145 x 78 x 60 in
Call For Pricing
Request a quote for more detailed pricing including freight and taxes.
