8 Watt-208-277V Heating Cable with CR Jacket
Item CodeGFIS-8XL2-CRSKU8XL2-CR
Brand Raychem® Conductor Material Copper Core Conductive Jacket Material Modified Polyolefin Model XL-Trace Temperature Rating 150 deg F Voltage 208 to 277 V AC Wattage 8 W/ft Application For pipe freeze protection and flow maintenance Conductor Size 16 AWG Country USA Manufacturer Chemelex Standard/Approvals CSA Certified|cULus Listed|FM Approved|UL Listed Type Self-Regulating Warranty 10 Years

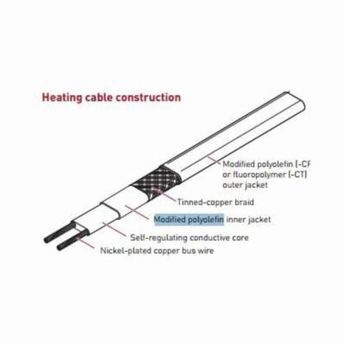

- Raychem XL-trace is designed for pipe freeze protection and flow maintenance in the following applications Freeze protection of general water piping (aboveground and buried), freeze protection of fire sprinkler system piping, including sprinklers, flow maintenance of greasy waste lines (aboveground and buried), flow maintenance of fuel lines (aboveground). The heating element in the XL-trace heating cable consists of a continuous core of conductive polymer extruded between two copper bus wires. The XL-trace heating cable regulates its power output in response to pipe temperature changes. This self-regulating technology allows XL-trace heating cable to be overlapped or installed on plastic pipes without overheating.
- Tinned copper braid
- 0.56 in W x 0.24 in THK dimensions
- Low total installed cost
- Low total operating cost
- 150 deg F maximum exposure temperature, 150 deg F maximum operating temperature, 0 deg F minimum installation temperature
- Simple to design
- Easy to install: cut to length, meter marks, fast RayClic cold connection system
- Energy efficient and safe: self-regulating cable, advanced energy saving controls, no cable overheating possible, suitable for plastic pipes
$14.00
/ LNFTIn Stock
Request a quote for more detailed pricing including freight and taxes.
Brand Raychem® Conductor Material Copper Core Conductive Jacket Material Modified Polyolefin Model XL-Trace Temperature Rating 150 deg F Voltage 208 to 277 V AC Wattage 8 W/ft Application For pipe freeze protection and flow maintenance Conductor Size 16 AWG Country USA Manufacturer Chemelex Standard/Approvals CSA Certified|cULus Listed|FM Approved|UL Listed Type Self-Regulating Warranty 10 Years
- Raychem XL-trace is designed for pipe freeze protection and flow maintenance in the following applications Freeze protection of general water piping (aboveground and buried), freeze protection of fire sprinkler system piping, including sprinklers, flow maintenance of greasy waste lines (aboveground and buried), flow maintenance of fuel lines (aboveground). The heating element in the XL-trace heating cable consists of a continuous core of conductive polymer extruded between two copper bus wires. The XL-trace heating cable regulates its power output in response to pipe temperature changes. This self-regulating technology allows XL-trace heating cable to be overlapped or installed on plastic pipes without overheating.
- Tinned copper braid
- 0.56 in W x 0.24 in THK dimensions
- Low total installed cost
- Low total operating cost
- 150 deg F maximum exposure temperature, 150 deg F maximum operating temperature, 0 deg F minimum installation temperature
- Simple to design
- Easy to install: cut to length, meter marks, fast RayClic cold connection system
- Energy efficient and safe: self-regulating cable, advanced energy saving controls, no cable overheating possible, suitable for plastic pipes
