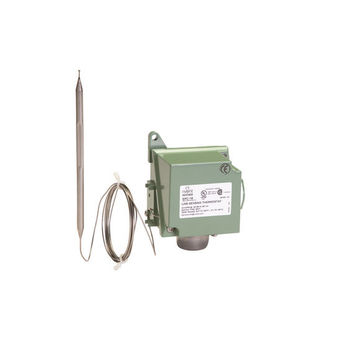

LINE SENSING THERMO ADJ 25-325 DEGREES
Item CodeGFIS-AMC-1BSKUAMC-1B
Brand Raychem® Country USA Height 8 in Manufacturer Chemelex Number of Relay Inputs 3/4 in NPT Conduit Hub Sensor Type Fluid-Filled (Silicone) Bulb and 9 ft (2.7 m) Capillary Switch Action SPDT Contact Type Line Sensing Width 4.72 in Application For used to control heat-tracing systems used for freeze protection in nonhazardous locations Enclosure Type NEMA 4X Length 72 in Maximum Load Current 22 A PROP 65 This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of Ca to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of Ca to cause birth defects or other reproductive harm. Standard/Approvals UL Listed|CSA Certified|CE Marked|RoHS Compliant Terminal Designations Threaded Voltage 125/250/480 VAC
- The Raychem AMC-1B is a mechanical thermostat designed to sense the slab temperature of a Pyrotenax MI snow melting system with an ETI snow controller. The AMC-1B senses the slab temperature to ensure that the heated surface does not get too warm during a melt cycle. A slab sensing thermostat is a requirement for asphalt applications to ensure that the asphalt surface does not become soft and then damaged. It is recommended for concrete applications to provide energy savings.
- 300 series stainless steel sensor material
- 25 to 325 deg F set point range
- +/- 6 deg F accuracy
- Polyurethane-coated cast aluminum housing enclosure
- 2 to 12 deg F above actuation temperature dead band
- - 40 to 420 deg F sensor exposure limit
- - 40 to 160 deg F housing exposure limit
Call For Pricing
In Stock
Request a quote for more detailed pricing including freight and taxes.
