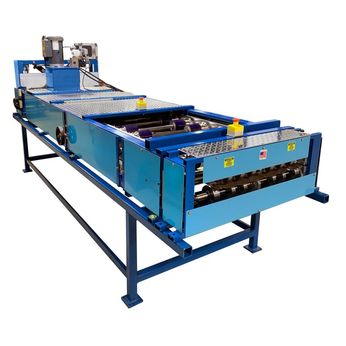

RollFormer 5V Crimp Panel
Brand Roll Former, LLC. Manufacturer Roll Former, LLC. Voltage 110V Horsepower 3 HP Phase 1PH Originally an agricultural panel, the 5V crimp is now a popular residential panel. Mount the 5V machine in your shop or make it portable and take it to the job site. The 5V machine features a hydraulic drive and front hydraulic scissors shear, with adjustable panel width capability of 14” to 28”. The “traditional size” 5V Panel feeds the machine 27 1/2” coil stock, giving you a 26” wide finished panel with 24” coverage with the overlap.
Digital Controller is optional but highly recommended for fully automatic operation.
Specifications:
- Hydraulic Drive and Front Scissors Shear
- 40 FPM speed
- Adjustable Width: 12’’-20’’
- 14 Forming Stages
- # 40 Chain and Sprocket / Spur gear drive
- 3 HP Electric-Hydraulic Power Unit, 110V, Single Phase with 16 cu in drive motor
- 416 Grade Stainless Steel Forming Rolls
- 303 Grade 1 1/4” Ø Stainless Steel Shafts
- Capacities: 24-29 ga. Painted Steel, .032” Painted Aluminum, Copper 16 oz. Max.
Options & Accessories:
- 3000 Lbs. x 30” Decoiler
- 5000 Lbs. x 30” Decoiler
- Machine Stand w/ 4 Corner Leveler Pads for shop use
- Striation Rib Attachment
- Digital Controller for Fully Automatic Operation - Siemens +/- 1/10” Tolerance
- Add Increased Production Capability IN SHOP only: 80 – 100 FPM using a 5 HP 220 Volt 3 Phase AC Drive Motor System & Pneumatic Powered Shear (90 – 110 psi). Used in conjunction with the above Digital Controller.
$51,800.00
/ EARequest a quote for more detailed pricing including freight and taxes.
