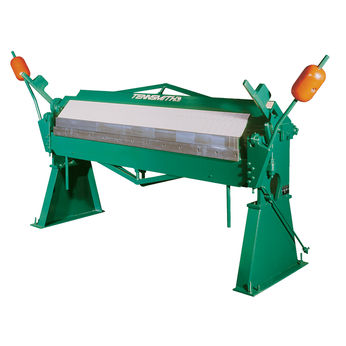

Tennsmith HBT72-16 Universal Box & Pan Bending Brake
Brand Tennsmith® Height 53 in Manufacturer Tennsmith Type Straight Width 36 in Capacity 16 Ga Length 89-1/2 in Size 6 ft Weight 2,200 lbs
Tennsmith Model HBT72-16 6-FT 16 Gauge Heavy Duty Universal Hand Brake. Used in conjunction with the TD Roll Former to make the actual bends in the part. Removable upper and lower fingers allow the complex bends required.
Capacity (with bending support angle removed, mild steel): 20 gauge
Bending Length: 72 in.
Maximum Lift of Beam: 1-1/2 in.
Front to Rear Beam Adjustment: 1/2 in.
Maximum Depth of Box: 4 in.
Minimum Reverse Bend: 5/8 in.
Minimum Flange in Capacity Material: 1 in.
Top Segment Tooling Widths: 2, 3, 4 in.
Lower Segment Tooling Widths: 1-1/2, 4, 6, 8, 12, 20 in.
Bending Beam Tooling Segments: 1-1/2, 4, 6, 8, 12, 20 in.
Maximum Transverse Bend (through tooling centers): 2 in.
Maximum Transverse Bend (at either end of machine): 3 in.
$9,250.00
/ EARequest a quote for more detailed pricing including freight and taxes.
