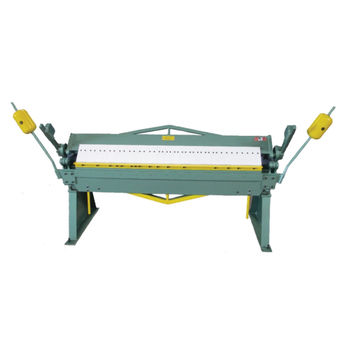

Tin Knocker 6-ft 16 Ga Universal Brake
Brand Tin Knocker Height 54 in Manufacturer TAAG Industries Corp. Width 38 in Capacity 16 Ga Length 95 in Size 6 ft
Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below.
Capacity with lower tooling flanges: 72” x 16 gauge
Capacity without lower tooling flanges, 72” x 20 gauge
Lift of beam: 1.5″”
Front to back ram adjustment: 1/2″
A minimum reverse bend of 5/8″
Min flange width: 1″
Finger widths: 1″, 3″, and 4″
Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″
Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″
Maximum transverse bend in center of machine: 2″
Maximum transverse bend at end of machine: 3″
Call For Pricing
Request a quote for more detailed pricing including freight and taxes.
