Vicon Coil Line - Duct Line Express
Item CodeVIC-CL-DLE

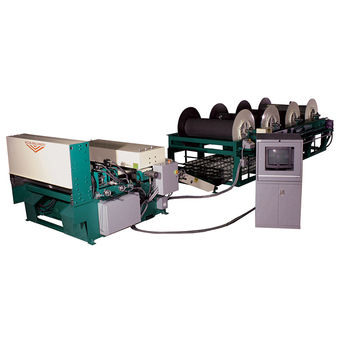

Brand Vicon Manufacturer Vicon Machinery The Duct-Line Express Front End is expandable to a Full Coil Line system at anytime. This practical solution includes:
- 1. Uncoiler
- 2. Feeder
- 3. Straightener
- 4. Beader
- 5. Notching unit
- 6. Shear
= Produces Blanked, Beaded, and Notched Flat Sheets
Eliminates drop on straight duct sections (compared to using only a shear)
Model: V-60 16-N Automatic Rectangular Duct Blanking System
Features:
- Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed.
- Robust, gear-driven four (4) roll straightener with 4″ diameter rolls.
- Heavy duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns.
- Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy duty torsion synchronization shaft insures proper shear angle throughout the stroke.
- Vicon PC based control system capable of controlling a complete system.
- Ring type beading with SMACNA spacing.
- Hands-free coil feed
Specifications:
- 16-30 Gauge mild steel capacity
- 12,000 lbs maximum coil capacity (with coil drive)
- Coil widths from 48″ – 60″ standard
- Up to six coil stations available
- Quick-change coil spools (patented)
- Hydraulic coil drive
- Powered in-feed guide ramp with hand wheel for change in coil widths
- Approximately 70 FPM line speed
Requires Quote
/ EAmore info
Out of Stock
Request a quote for more detailed pricing including freight and taxes.
