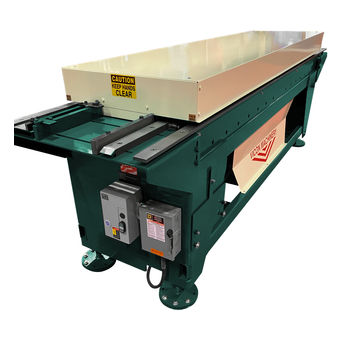

Vicon TDX 16-Station Machine has two Outboard and one Inboard Rollset options. Comes standard with the T-25b Transverse Duct Flange (F Profile) on one of the two outboard sides. 70 feet per minute forming speed, 26 thru 18 gauge Galvanized capacity. 7.5 HP motor with roller chain and oil bath, for a quiet and smooth operation.

Did You Know: If a shop has a TDX16 with standard electrics of 230 volt 3 phase, and they want to use 460 to run machine, they can purchase part # ESWB9D 460 Starter and Heater plus a few wiring changes and then run the 230 Volt machine on 460 electrics.

Base Machine with F profile or C profile (70 FPM)

(specify Right or Left outboard side)

Outboard Rollsets (choice of one):

1-1/8” 18 Gauge 3 in 1 Large Outside Tap, Large Standing Seam And Male Right Angle Flange

1-5/8” 16 Gauge 2 in 1 Large Standing Seam

Large Female Pittsburgh 16 ga thru 24 gauge

2” x 2” x 16 ga Fire Damper/Retaining Angle

TD (F Profile) Cleat Rolls 20-22 gauge twelve stations (does not lance/stitch the metal)

Inboard Rollsets (choice of one):

1 1/8” 20 Ga-24 ga Standard Standing “S”Cleat

1-5/8” 20-22 gauge Standing S (bar slip)

TD Cleat Rolls 20-22 gauge sixteen stations (does not lance/stitch the metal)

Options:

Variable Frequency Drive for speed adjustment

10HP Motor with Heavy Duty Gearbox for 16 gauge capacity on TD profile

Industrial Chrome Plating for TD (F Profile) roll set

Modified Frame for Short Throat Fittings (3″)
