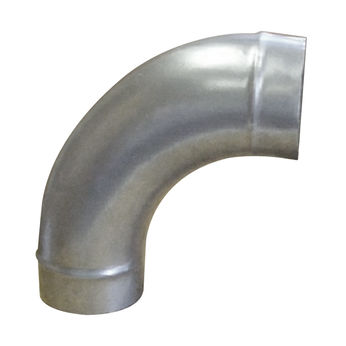

8" 22 Ga 90-Degree Die Stamped Elbow
Item CodeDS90BS08SKU0890 DSE
Center Line Radius 1.5 in End Style Bead End Diameter 8 in Shape 90-Degree Elbow - Die Stamped Elbows are often used with Spiral Duct on smaller diameters in the range of 4" thru 12". Manufactured by stamping out 2 halves of 22 or 24 gauge from a Press and then stitchwelding the throat and heel into a one piece Airtite elbow with a Smooth interior and exterior, and a stop bead plus collar. Offered in 90 and 45 degree with a 1.5x CLR which means that the diameter and throat height from bead to bead are same measurement. 1x CLR also available.
$52.49
/ EAIn Stock
Request a quote for more detailed pricing including freight and taxes.
Center Line Radius 1.5 in End Style Bead End Diameter 8 in Shape 90-Degree Elbow - Die Stamped Elbows are often used with Spiral Duct on smaller diameters in the range of 4" thru 12". Manufactured by stamping out 2 halves of 22 or 24 gauge from a Press and then stitchwelding the throat and heel into a one piece Airtite elbow with a Smooth interior and exterior, and a stop bead plus collar. Offered in 90 and 45 degree with a 1.5x CLR which means that the diameter and throat height from bead to bead are same measurement. 1x CLR also available.
