Air Cam Clinching Machine

Harry Thompson IVJanuary 21st, 2020

Offering the simplest and most economical method to clinch two (2) pieces of same, dissimilar, or painted metals with 28 to 14 gauge mild steel capacity.

Air Cam Model AC-3-26 Free Standing Clinching Machine Demo

No Spot Welding and No Rivets
Less Expensive Than conventional clinching machines due to low CFM usage (1/3 the competition)
Low Maintenance
Laser Guide Included
Air Operation Connects Into Shop Air 80-100 P.S.I.

14″ and 26″ throat. Runs on 80-100 lbs of air, capable of clinching two pieces of 28 Gauge — 14 Gauge Mild Steel.

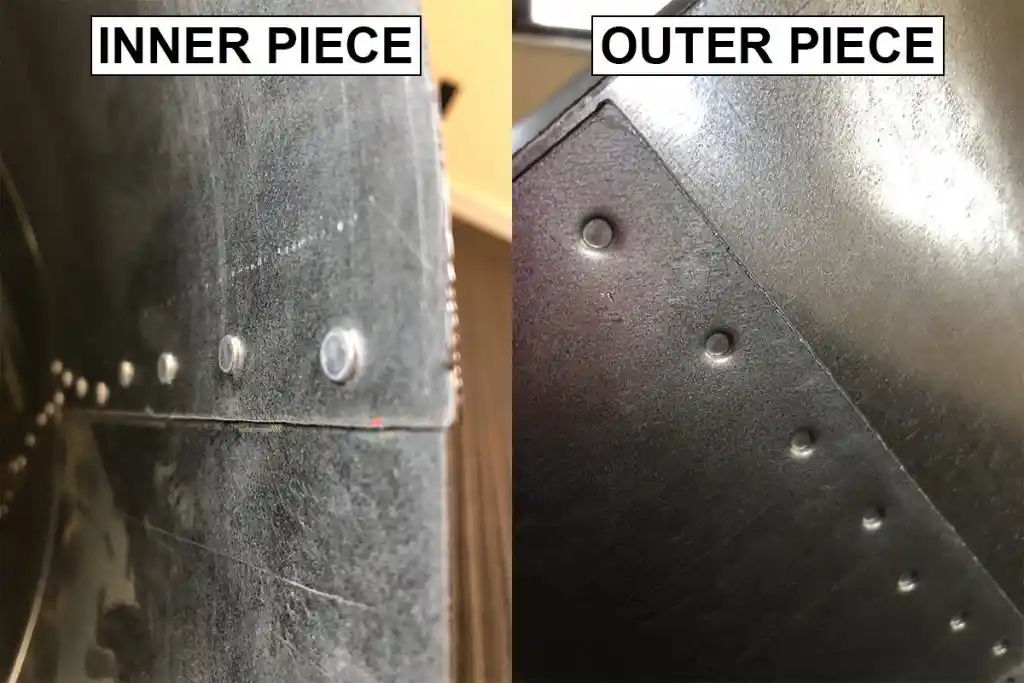

Ideal for any shop making Drain Pans, Plenums, and Collars for Square to Round Fittings. The Mid Rivers Air Cam Clinching Machine clinches two pieces of metal and is a great alternative to Spot Welders because it leaves no burn marks.

Includes C Die (28 to 20 ga)
Type D (18 ga capacity) and E (16 and 14 ga) available
Easy change out
