Air Handler Stands
Conklin Metal IndustriesJuly 23rd, 2019
Foldable Boxed Closet Stands vs. Stacked Stands

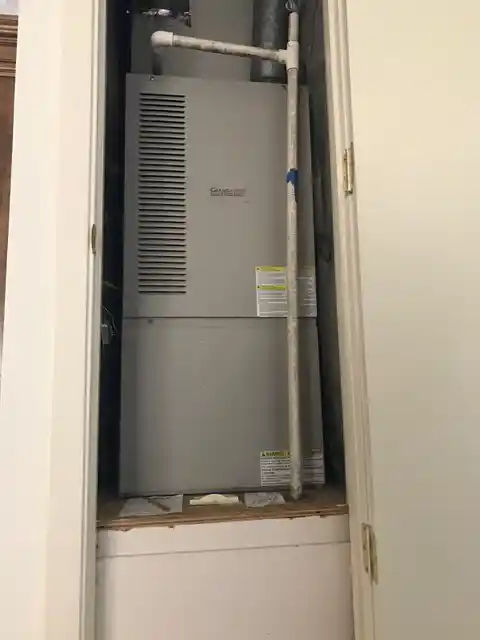

How often is the door width too narrow for the width of the air handler stand during install?
The door width to the air handler unit is usually smaller than it’s stand width, so using a regular stand requires maneuvering whereas a knocked-down stand collapses to install easily in tight spaces.

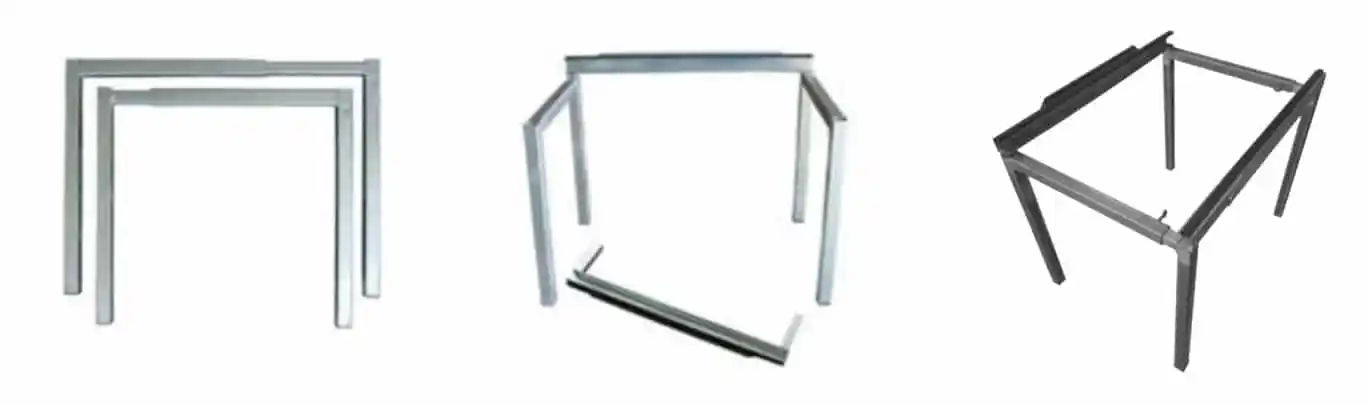

Setup in Three Easy Steps:
1. Stand the left and right adjustable legs up.
2. Slide filter rails onto legs.

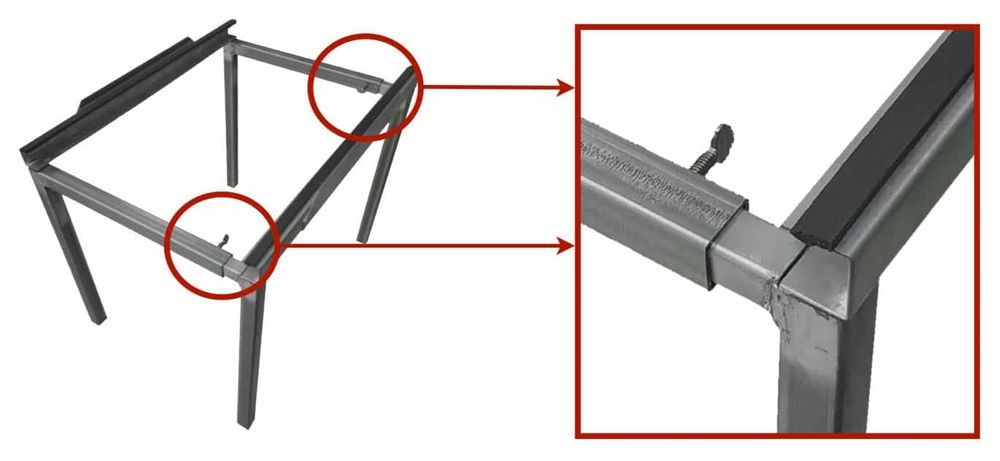

3. Adjust width and tighten thumb screws.

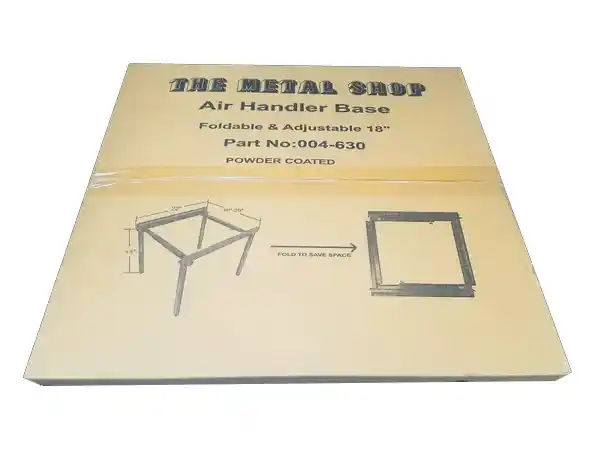

Knocked-Down Stand
All the great features of our assembled stand, knocked down in a box for easy shipping & storage.
Standard Features:
- 16 gauge G90 galvanized steel
- Assembles in under a minute
- 1" filter channel
- Neoprene vibration gasket
- Adjustable width
- Set screws for added stability

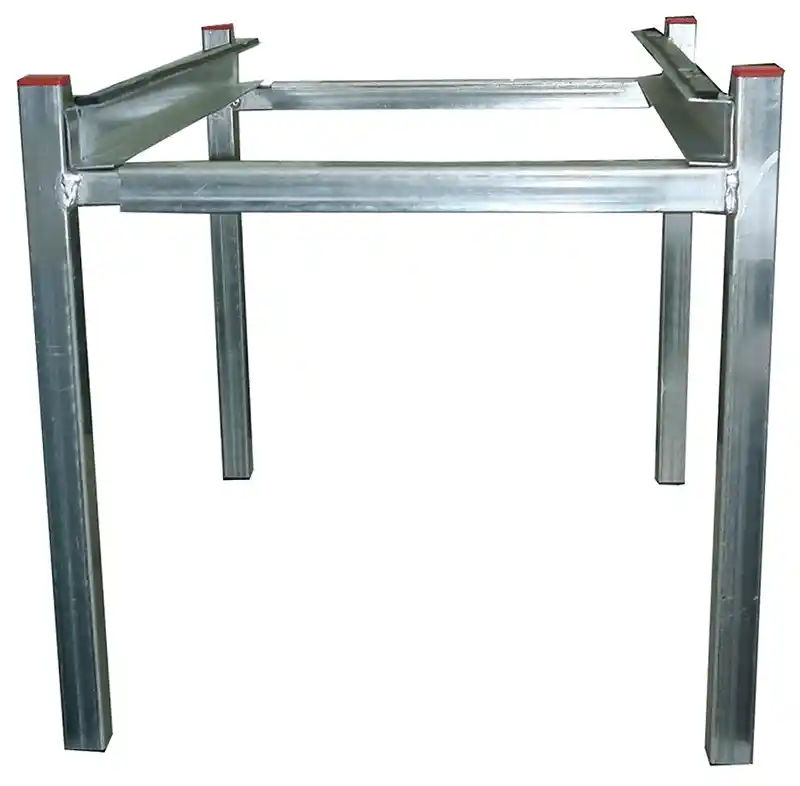

Assembled Stands
Perfect for free draw return air systems where AHUs are in closets or other conditioned spaces.
Standard Features:
- 16 gauge G90 galvanized steel
- Fully welded construction
- 1" filter channel
- Neoprene vibration gasket
- Adjustable width
