Clinching Machine

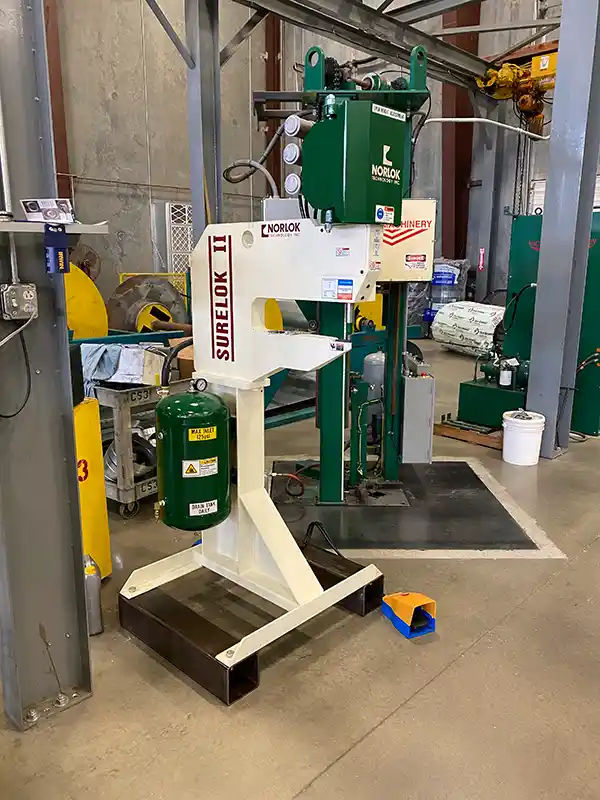

SURELOK II E-25 and E-18 Floor Mounted Clinching Machines
SURELOK II P offers greater clinching versatility and is able to fasten material from as thick as 14 gauge to as thin as 32 gauge.
- Rigid steel frame offers less deflection for longer tool life
- Close tooling access to get in close for more applications
- Fast cycle times for increased production
- 18″ or 25″ throats for greater reach for larger parts
- "Intelligent" safety stroke for greater operator safety
- Direct acting power stroke for more reliable joints
- Simple tool adjustments for little or no setup time
- Adjustable stroke that reduces pinch point and air consumption
- Upgradeable feature allows you to add what you need, when you need it
- 25 years of design experience with proven reliability and quality
- Air powered (requires no electrical hookup)
- Affordable prices for low investment and faster payback
Throat 18″ or 25″— Choose the depth of frame behind punch
Urethane punch assembly — Reliable tooling with urethane stripper
Close reach lower arm — Clinch in tight areas — also great for pipes
2 piece die holder and insert — Fast to change and easy to clean
Adjustable stroke — Adjust open height to minimize pinch point
"Intelligent" Safety stroke — Reduces pinch point to less than 1/4″ even with 1″ stroke
Lexan guard — Eye protection without restricting access
Air surge tank — Minimizes the effects of poor air supply
Air filter/regulator — Nothing to add — just plug your air line into the tank
Frame mounted tool kit — All tools required for adjustments are included
