Mechanical Shear

Harry Thompson IVNovember 19th, 2018

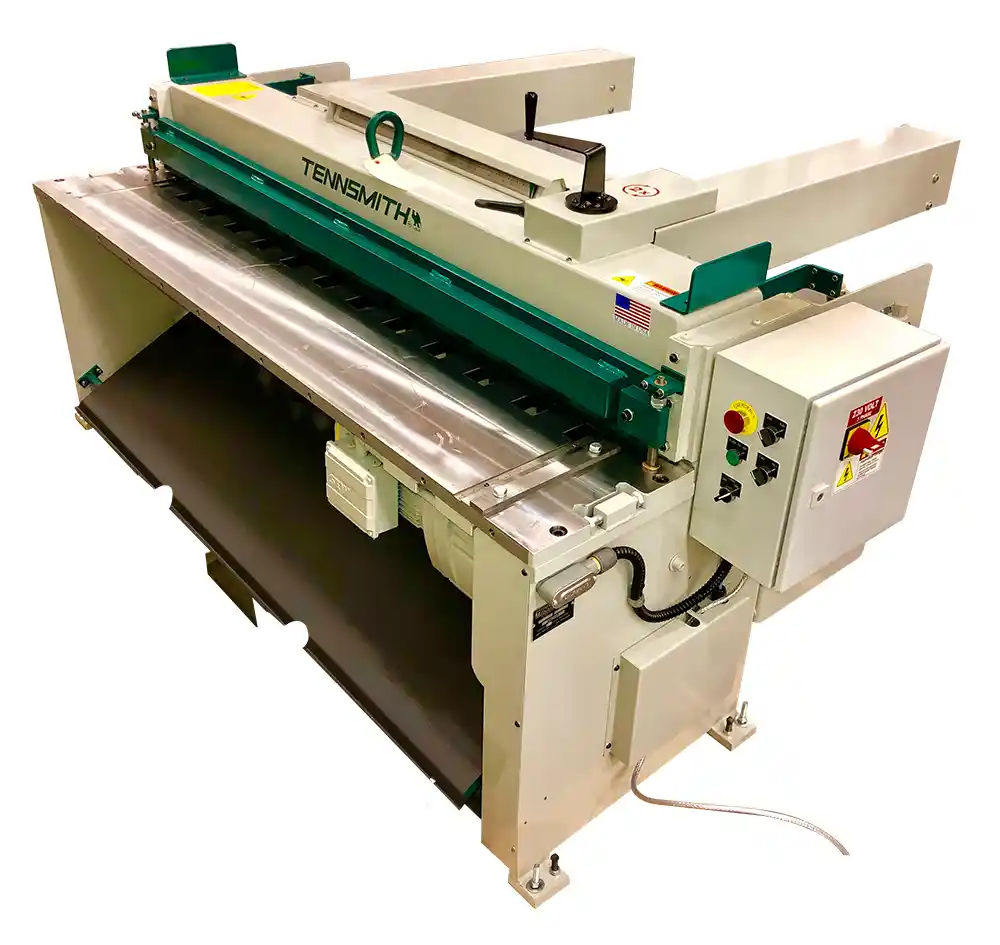

Tennsmith 6 ft 16 ga Mechanical Shear MSE

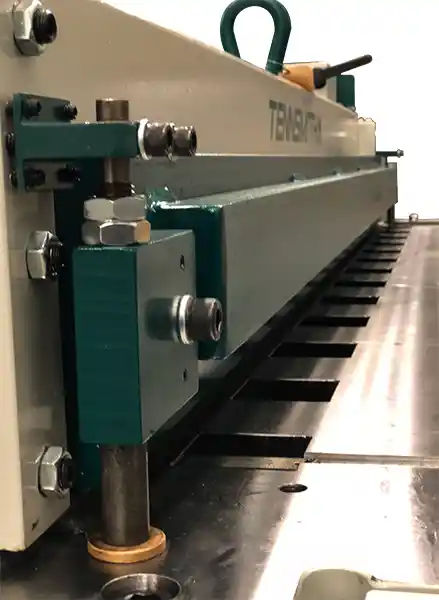

Both upper and lower Blades, made of High Carbon High Chrome steel, have 4 cutting edges. The Holdown bar is self leveling with neoprene inserts. Front work table is Precision Machined.

Unless a Duct Shop is cutting up 10 ft hanger strap, chances are likely that the 10 ft cuts are rarely if ever called for. Going from Tennsmith’s 10 ft to 6 ft Shear saves a footprint of 48” x 69”. These days more than ever that’s valuable shop space. Consider Tennsmith’s 6 ft 16 ga Mechanical Shear ( shown here with Performance Package Front Return).

MSE series has a solid single bar hold down system vs individual hold down feet on a LM series. The solid bar decreases the potential of marking lighter metals like Aluminum or Copper but in return has less holding force of the workpiece in the center of the machine.
Performance Package with front return means the operator saves steps in retrieving cut material.

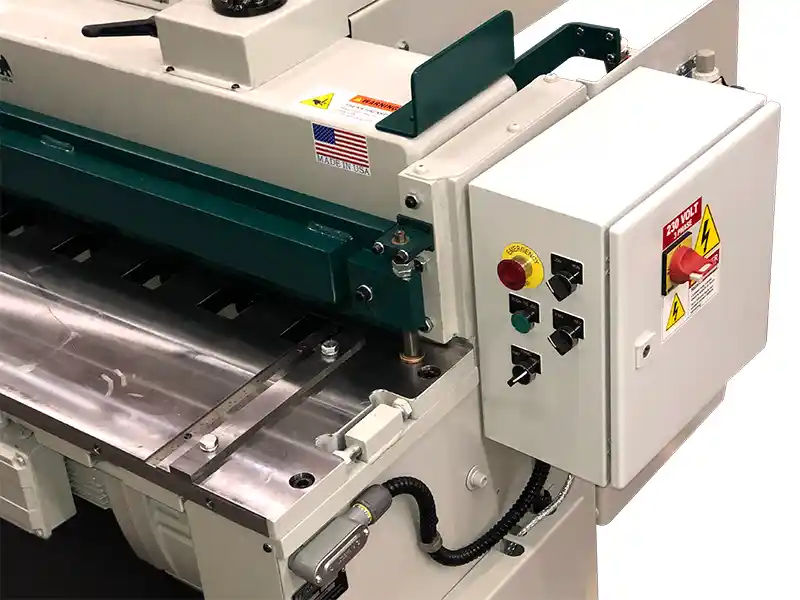

3 HP Motor, 230 volt 3 Phase electrics; 40 strokes per minute, Cutting Length of 73”, and capacity of 16 ga Galvanized, 20 ga Stainless.

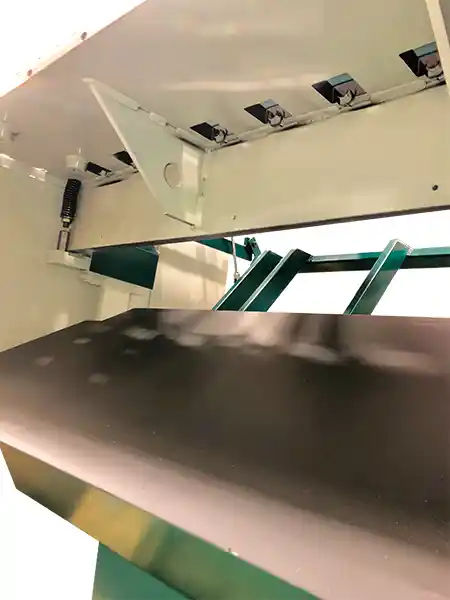

Air operated sheet support system means one man can cut material without assistance from a second to hold up lighter materials.

Floor space of 92" x 69" x 50", weight of 2300 lbs.

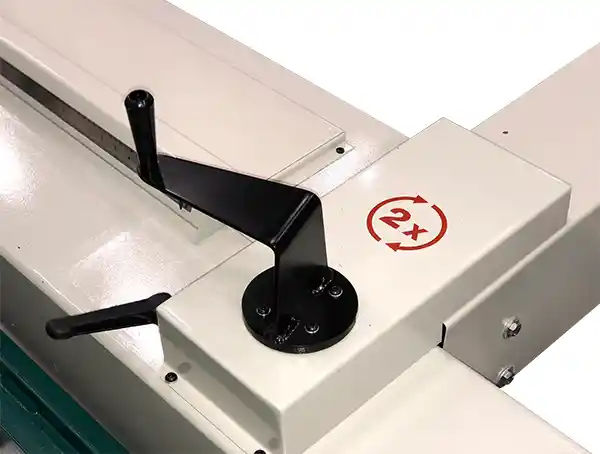

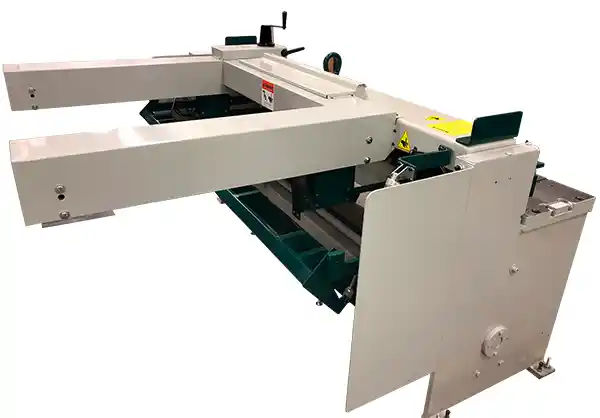

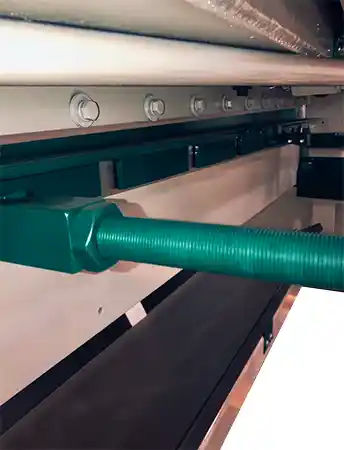

2x-F Backgauge System allows the operator to move backstop from 0 to 30" with two quick turns of the handle.

Air operated sheet support system

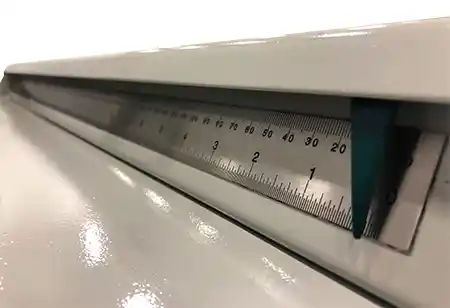

Dual inch/metric inlaid bed scales and non-metallic gibs.

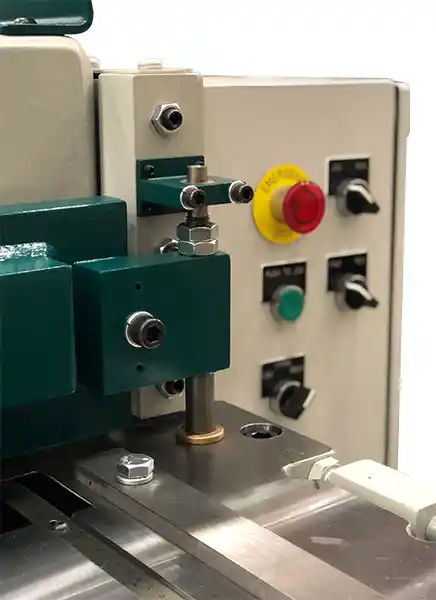

Single, Continuous, and Jog Stroke Cycles.
Backgauge depth of 30”
