Rooftop Supports

Harry Thompson IVJuly 16th, 2019

CADDY PYRAMID Equipment Supports

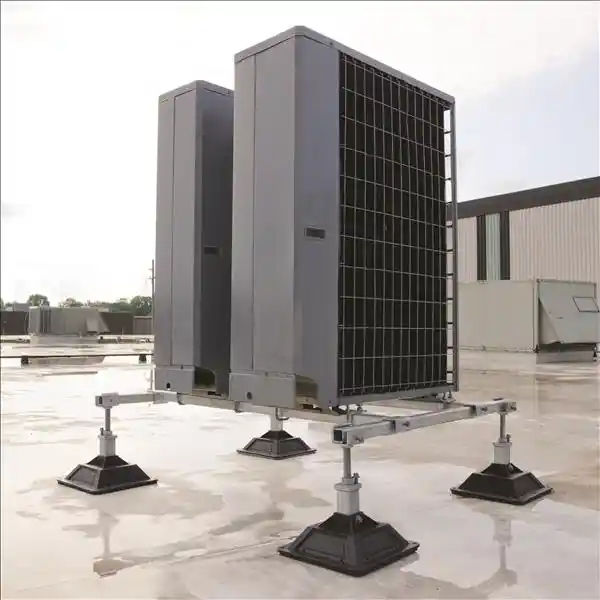

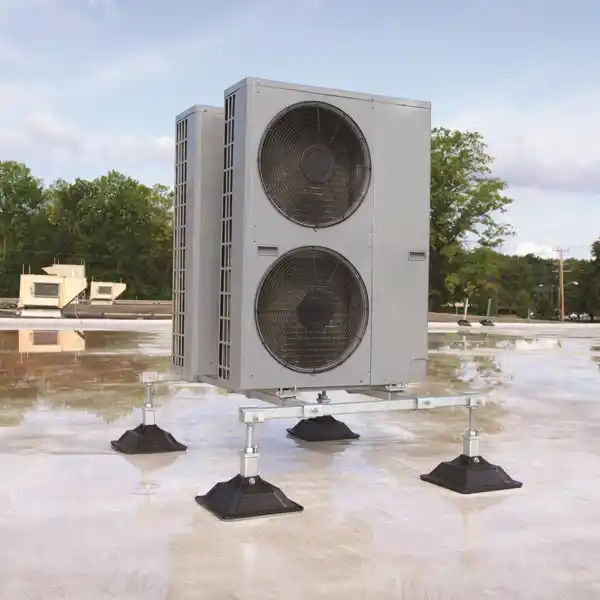

Supports chillers, air conditioners and other mechanical systems, evenly distributing the load.

The nVent CADDY Pyramid Equipment Support is a fast, flexible and innovative system for supporting heavy-duty mechanical services on rooftop surfaces. Superior load distribution and a low abrasion foam interface combine to ensure that the roof membrane is protected despite varying roof surfaces and shifting caused by expansion and contraction.

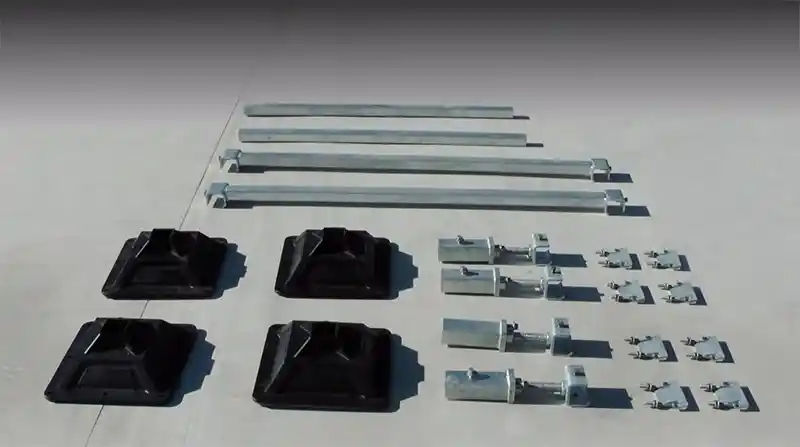

Caddy Pyramid Equipment Support Kit includes post base, frame, and clamps.

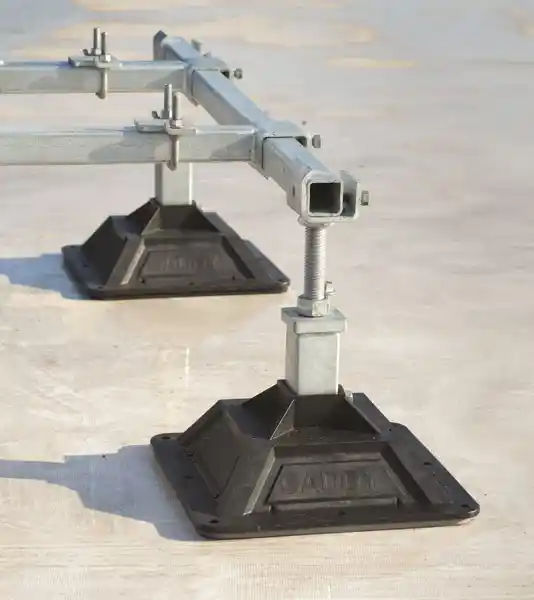

Height Adjustable up to 36″ with a post base height extension


Ready to use out of the box, assembles and adjusts to size in minutes by one person with one tool.

CADDY also offers custom design solutions for non-standard equipment.
Hot-dip galvanized finish provides superior corrosion protection. Integral foam pad provides gentle interface for all roof types. Helps prevent roof membrane damage.

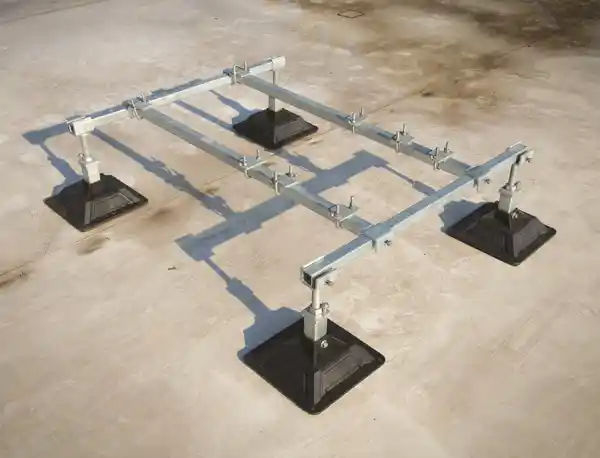

Frame easily adjusts to the required size.

Innovative crossbar, open clamp design that enables quick assembly.


Assembled support can be lifted as one unit and easily relocated.

Uses fewer blocks than competitors. Superior load capacity (3-to-1 load rating). A 300 lb support can handle up to 900 lbs before failure.
