Duro Dyne TSP-1 Spotwelder 110v

Duro Dyne TSP-1/TSP-2/TBW Owner's Manual

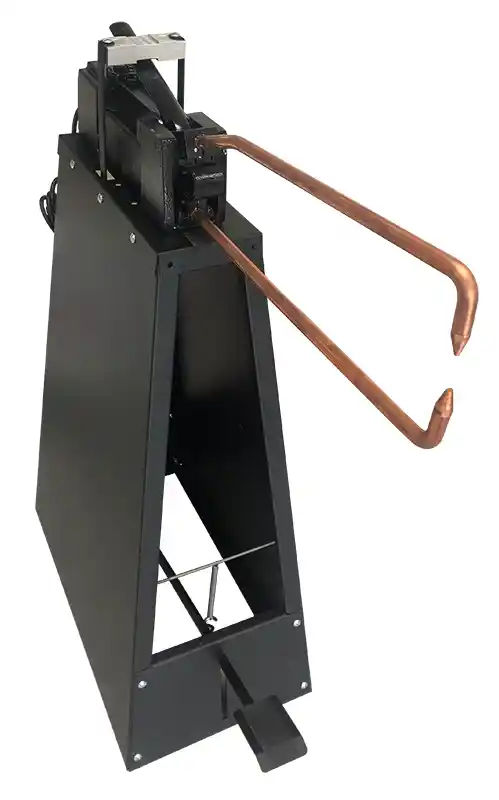

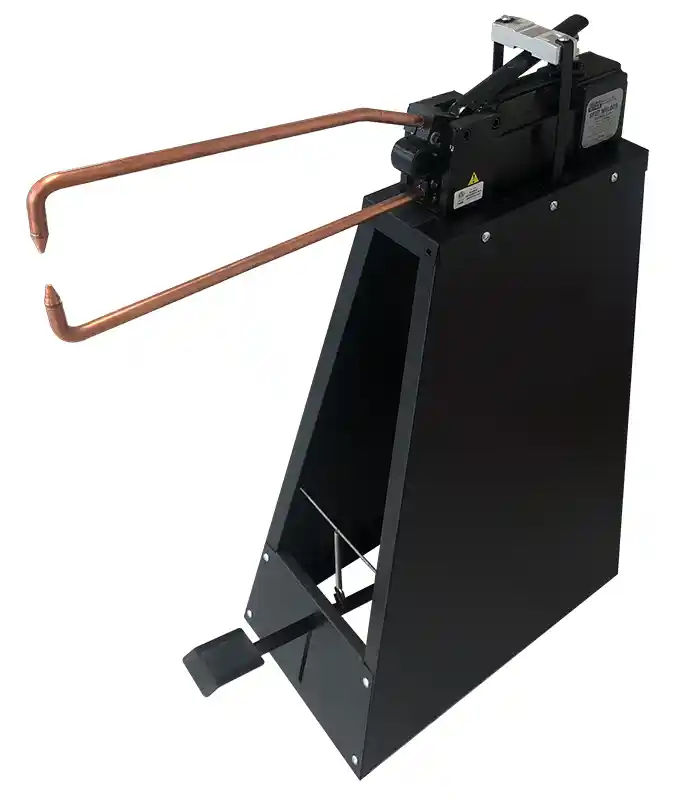

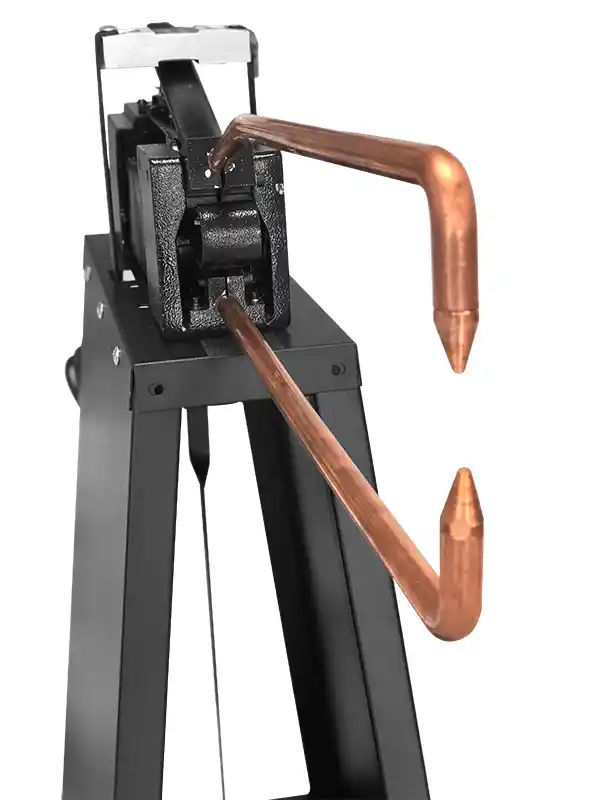

Duro Dyne’s TSP-1 Spotwelder is air cooled on a stand with 18” tongs and tips. These portable Spotwelders are ideal for shops that need a spotwelder but not on a high production level. Duro Dyne discontinued making them a few years ago after some 75 years. We bought the remaining 8 and have them available…but just these remaining machines.

February 2020 UPDATE: We have sold all remaining inventory of TSP-1 Spotwelders. We recommend the Duro Dyne BAW2 Water Cool Spotwelder as an alternative.

Parts List:

#9210	TSP/TBW Front Body
#9211	TSP Rear Body
#9212	TBW Rear Body
#9213	TSP/TBW Rear Body Cover
#9214	TSP Carriage
#9215	TBW Carriage
#9216	TSP/TBW Nose Piece
#9217	TSP/TBW Lower Arm Mounting
#9218	TSP Handle
#9219	TBW Handle
#9220	TSP/TBW Switch Mounting Bracket
#9221	TSP/TBW Handle Spring
#9222	TSP/TBW Actuator Spring
#9223	TSP Nylon Actuator
#9224	TSP/TBW Micro Switch
#9225	TSP/TBW Switch Control Screw
#9226	TSP Timer 110 Volt
#9227	TSP/TBW Potentiometer
#9228	TSP-1 Weld Transformer
#9229	TBW Weld Transformer
#9230	TSP Line Cord 110 Volt
#9231	TSP2/TBW Line Cord 220 Volt
#9232	TBW Hi/Lo Switch
#9233	TSP/TBW Filter Screen
#9234	TSP-1 Primary
#9235	TBW Primary
#9236	TSP Secondary
#9237	TBW Secondary
#9238	TSP/TBW Pivot Bolt
#9239	TSP2/TBW Timer 220 Volt
#9240	Line Cord Retainer
#9241	TBW Nylon Activator
#9242	TSP-2 Weld Transformer
#9243	TSP-2 Primary
