V Notch and Corner Notch

Harry Thompson IVNovember 5th, 2018

...Their Role in Rectangular Duct Fabrication

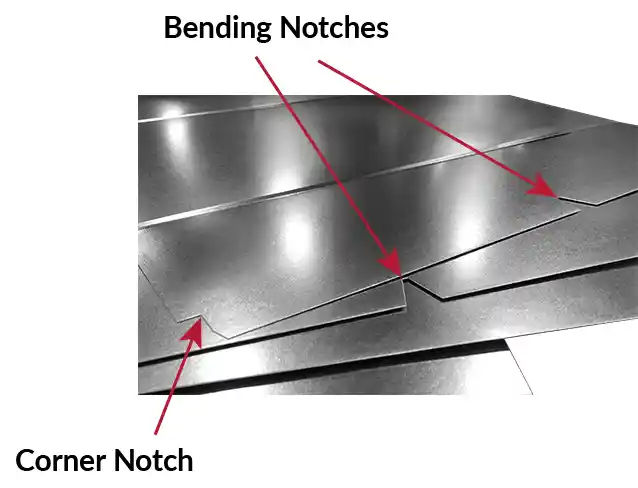

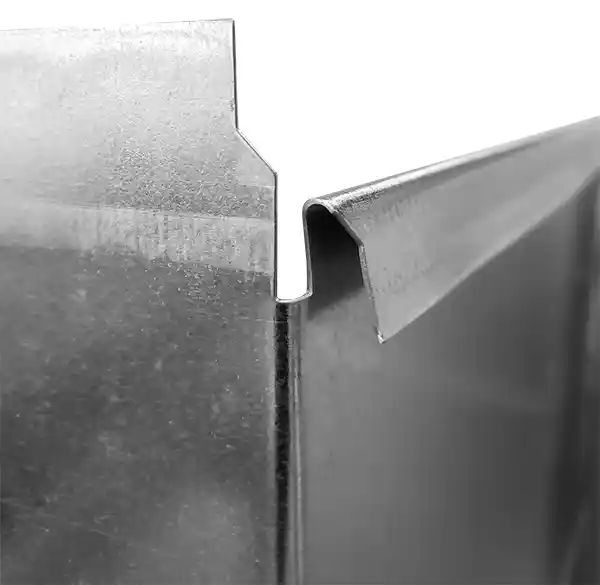

V Notches are the bending notches on straight duct for Slip & Drive

V Notch: Bending Points

How do you bend a flat sheet of metal into a rectangle or L section if there is a profile rollformed on the two vertical edges of the Blank as it approaches the Braking Station?

You can’t…unless there is a way to remove the rollformed edge from interfering at the bending points. Notching out a V or Slot at these points prior to rollforming a profile on these two edges is the solution. The depth of this bending notch varies according to the Transverse Connection being used on the Duct. There are three methods for the transverse connection: Slip & Drive Duct, TDC/TDF, and Ductmate. The first two have a profile rollformed on the sheet’s edge and thus require a notched out area at the bending points, the third–Ductmate–is an entirely separate component and does not.

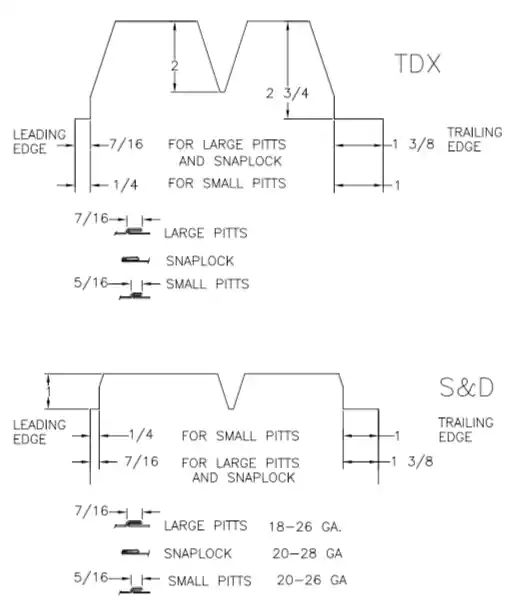

Vicon schematics for notches on both Slip & Drive and TDC/TDF

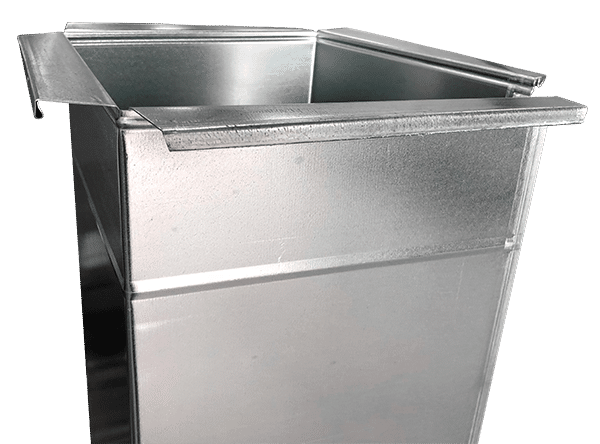

Slip & Drive Duct

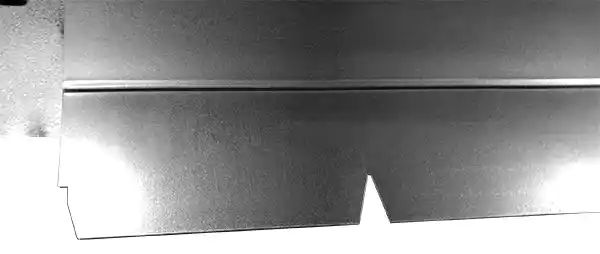

Uses a 1" deep V Notch to remove the drive turn hem from interfering during the bending process.

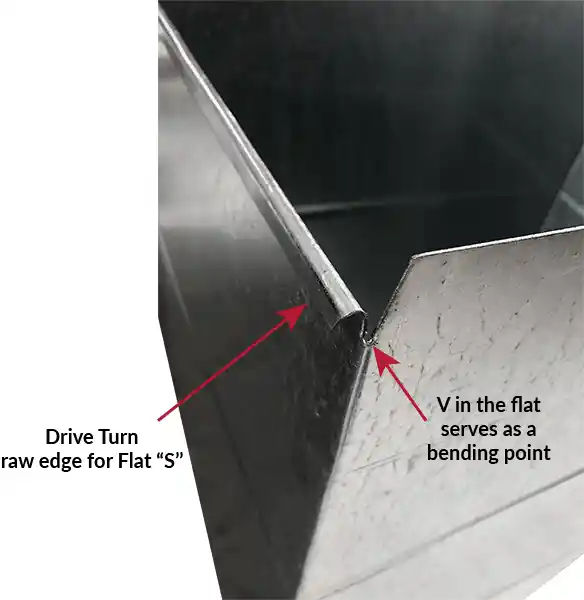

Slip and Drive duct requires the notches because, even though two of the four sides of the edge are raw and elevated for the Flat S-lock, the other two sides have edges with a 180-degree open hem for the drive cleat. The notching for Slip & Drive duct is a V-notch with a 1" depth, which occurs before the drive hem is turned.

Notched in the flat, then the drive is turned, then bent into rectangular duct.

Flute Notched in the Flat

Flute Notch after Drive Hem Turned

TDC or TDF Duct

2” deep notch is required to remove the Flanged edge from interfering during the bending. Lockformer uses a true 2-5/8” Slot Notch. Vicon offers the V Notch with a Slot at the bending point that they refer to as a Flute Notch; the depth is adjustable so it works on both Slip & Drive Duct and TDC Duct.

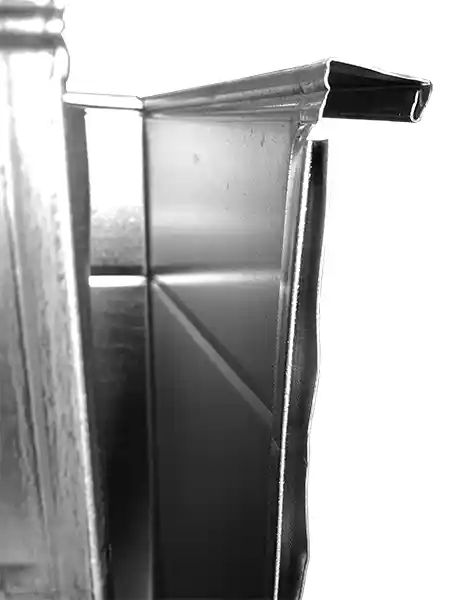

TDC Duct must be notched at corners because all four sides have flanges formed onto the duct edge.

Vicon offers two variations of a V Notch for the bending points- one is a true V notch; the other is a V notch with a slot at the bending that they call a Flute Notch.

Vicon has designed their coil line notching stations so that a true V notch can be used on both Slip & Drive Duct (1” depth notched out) or TDC/TDF (2” or more depth notched out) simply by adjusting the positioning by means of those turning wheels with handles.

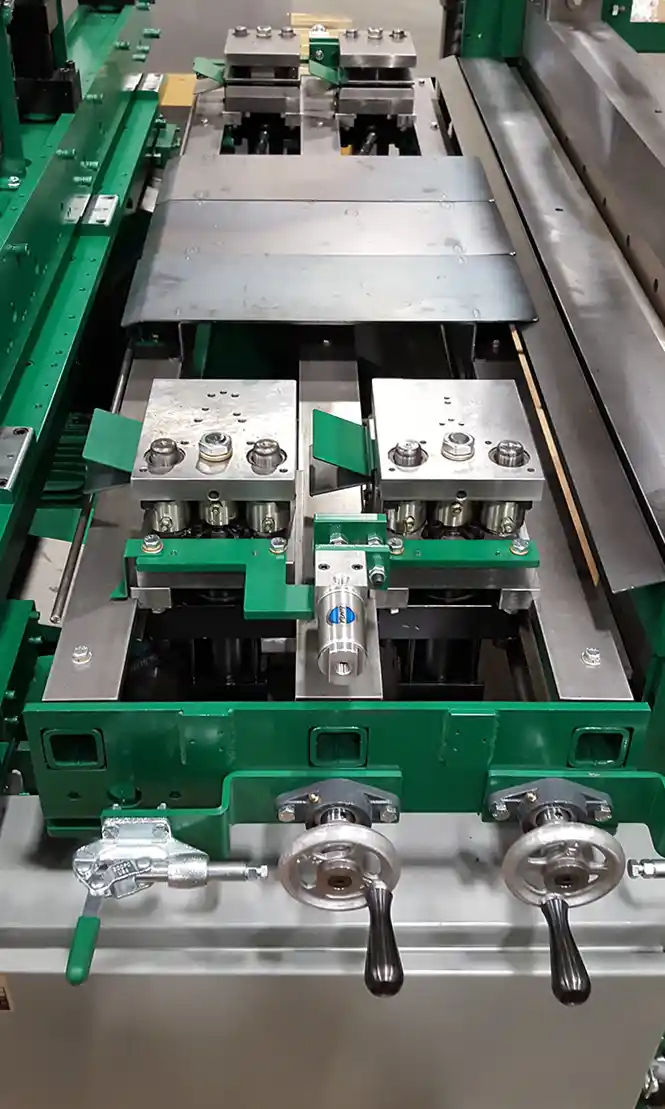

The operator can bring the notch heads in and out to adjust the depth of the notch for either TDC/TDF or S&D. The attached photo shows the notch head adjustment hand wheels that are located on the operator side of the coil line.

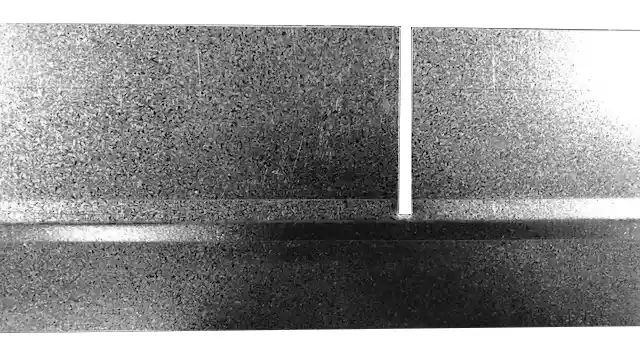

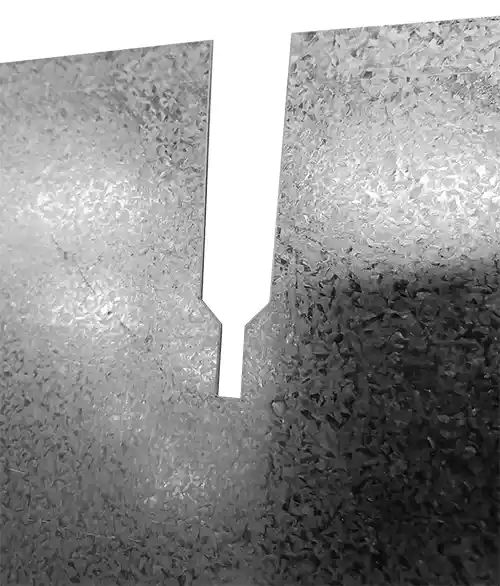

Lockformer uses a Slot Notch for the Bending Points on TDC Duct.

Ductmate

No notch is needed because there’s no roll-formed profile on the bending points.

Although a minimal notch may allow easier bend on heavier gauges, no Notch is needed when using Ductmate for the duct connection. Ductmate is an entirely separate product, it’s attached to the edge of the duct once the duct completes the bending process. And it’s put on, one separate flange for each side of the duct.

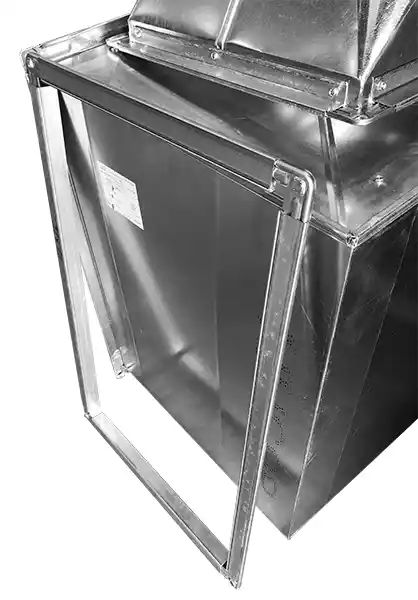

Ductmate is a Slide on Frame, completely separate from the duct section it’s slid over. No profile rollformed on the edge.

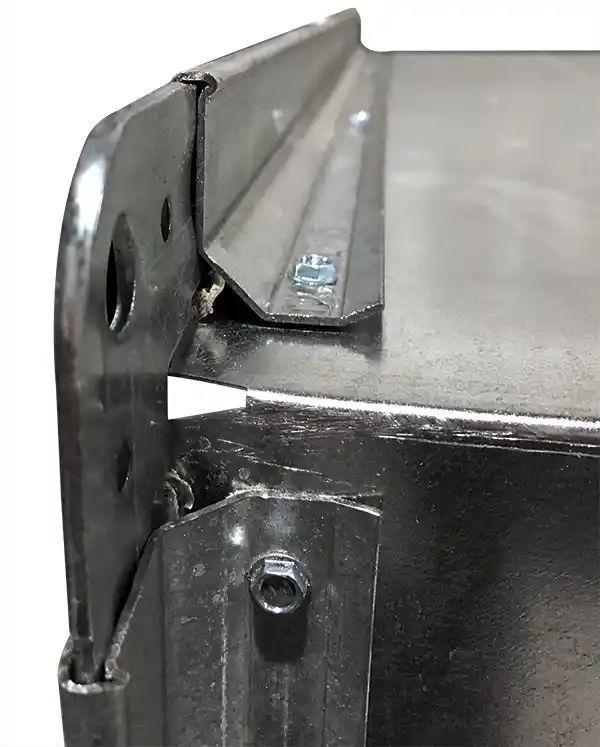

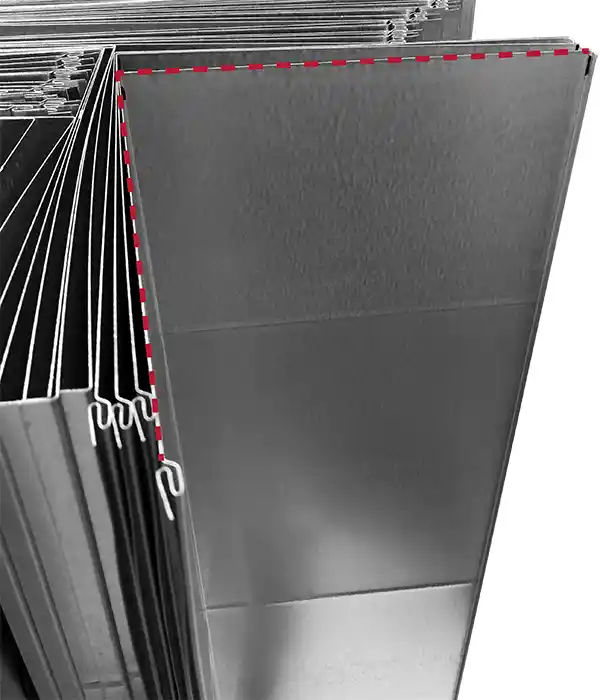

This is Ductmate duct; notching is not needed because it’s a slide on frame ; notching also leaves a large gap to seal.

Ductmate Duct: no notching required to bend the 90 degree angle since square profile rolled on the ends.

End Notches (also referred to as Corner Notch)

The purpose of the corner notches on TDC duct is so that there’s an open space at the end so that the TDC profile isn’t rollformed onto the Pittsburgh Seam. Corner notch is 2-5/8″ deep, with the other dimension varying depending on whether it’s for the Male flange or Female seam.

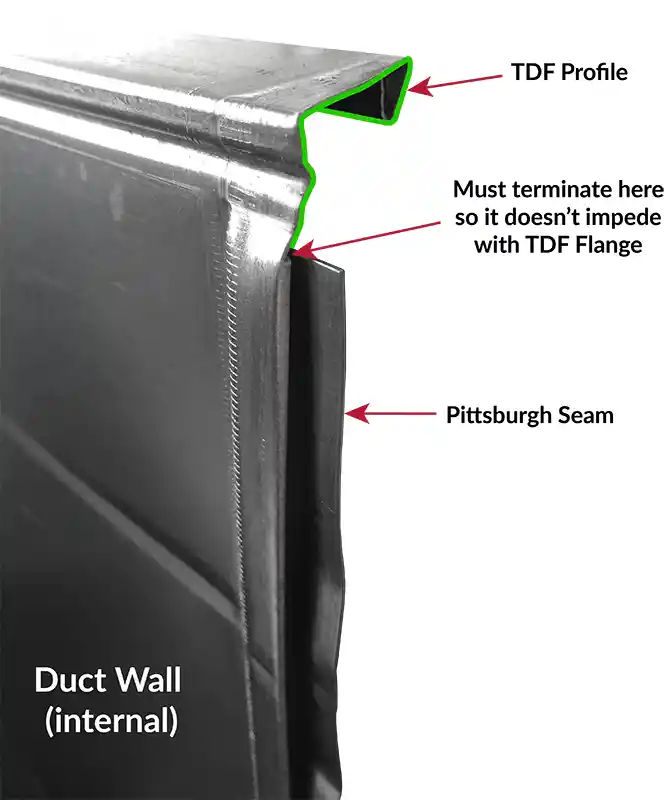

The corner notch keeps the male Pittsburgh from being part of the TDF profile when roll-formed

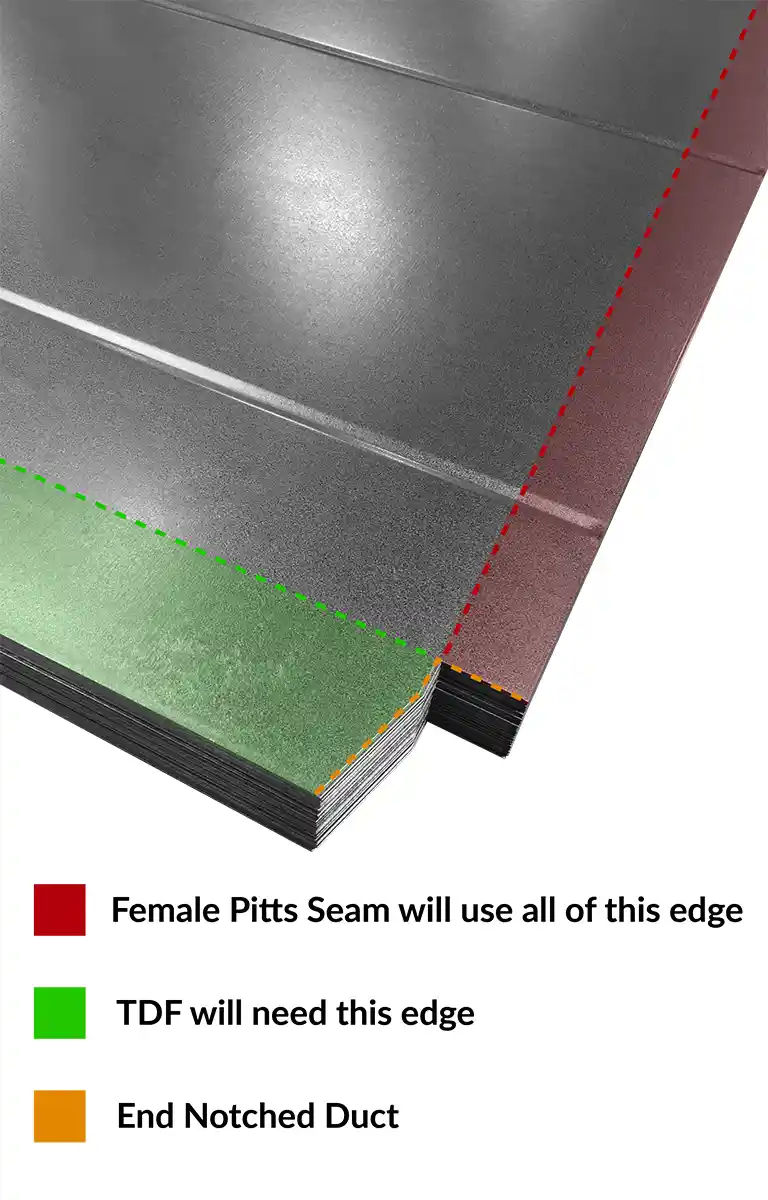

In a coil line, the 60” width approaches the Braking station horizontally. Leading the way is the female Pittsburgh Seam rollformed on the entire front edge with the Right Angle/Male Pittsburgh rollformed on the ending edge. Because these two end edges of the blank are moving horizontally thru the Braking station, they don’t interfere with the bending process. All four corners have a square notch out so that the male and female Pittsburgh (or Buttonlock) can be seamed together at the very end of the fabrication process.

The square-like End Notches are used so that the Pitts Seam will not run up thru the Rolled up TDF profile.

Once rollformed becomes...

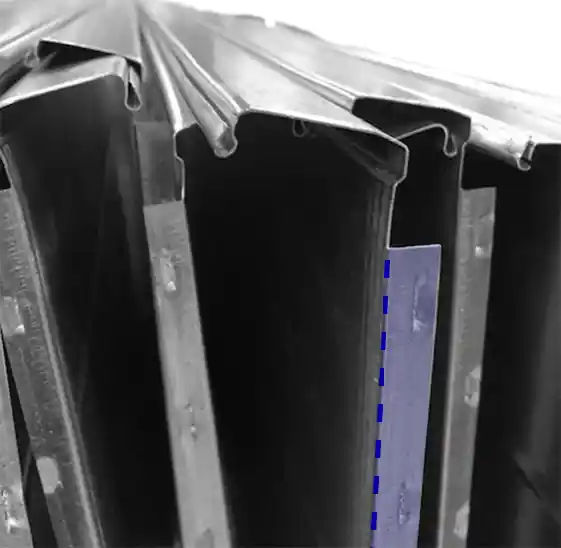

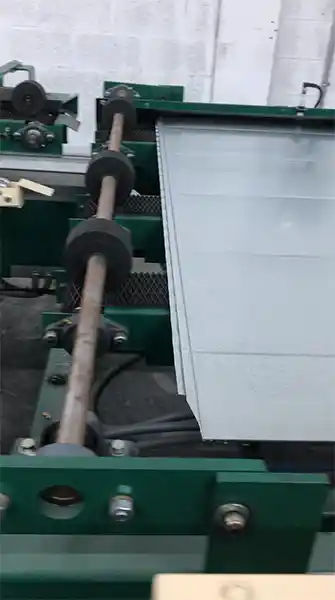

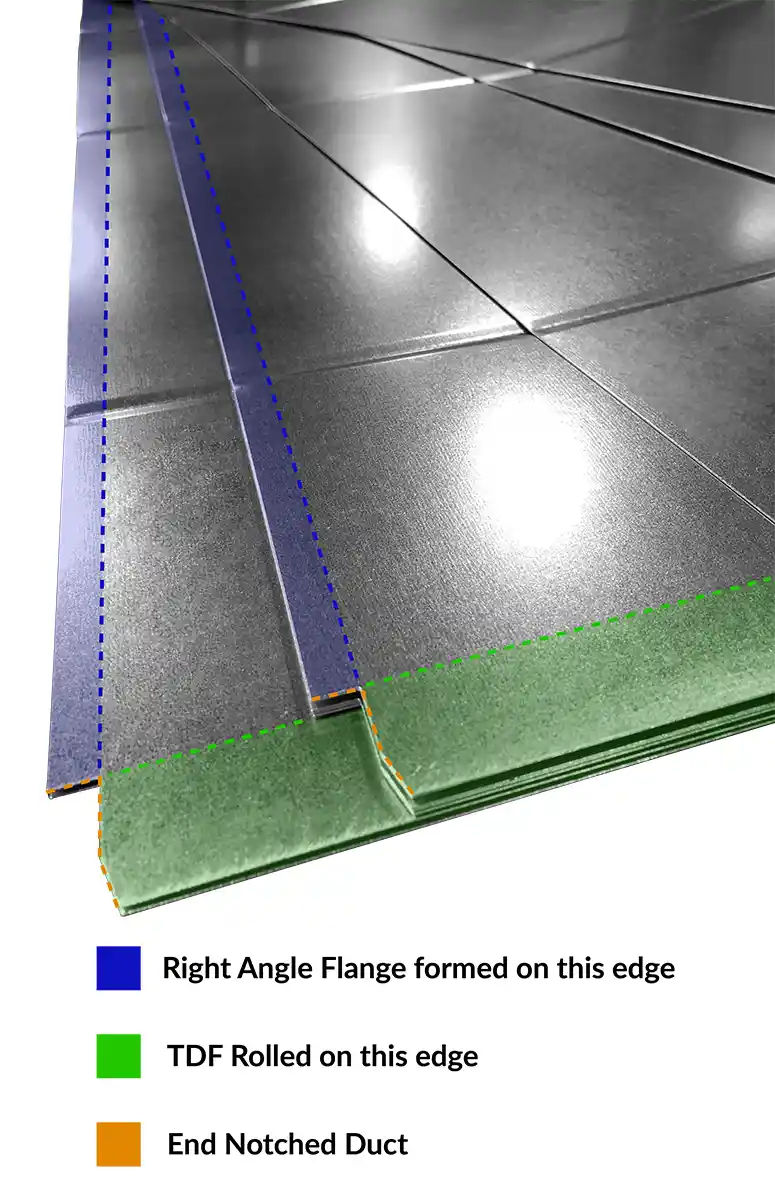

End Notch for Male Pittsburgh (aka Right Angle Flange) shown in Flat.

Once rollformed becomes...

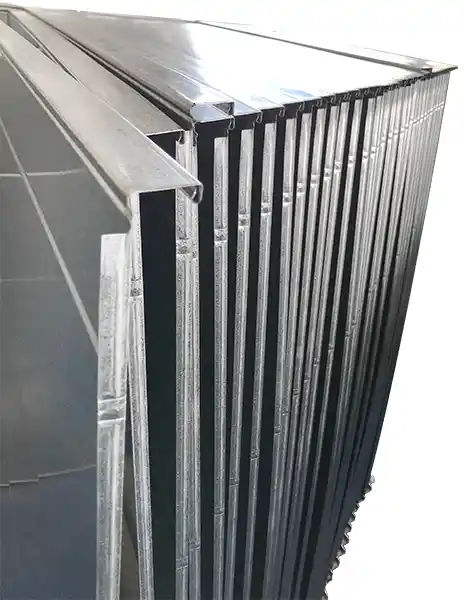

Corner notches on ends so that the longitudinal seam does not interfere with the over 2” of metal used on TDF profile

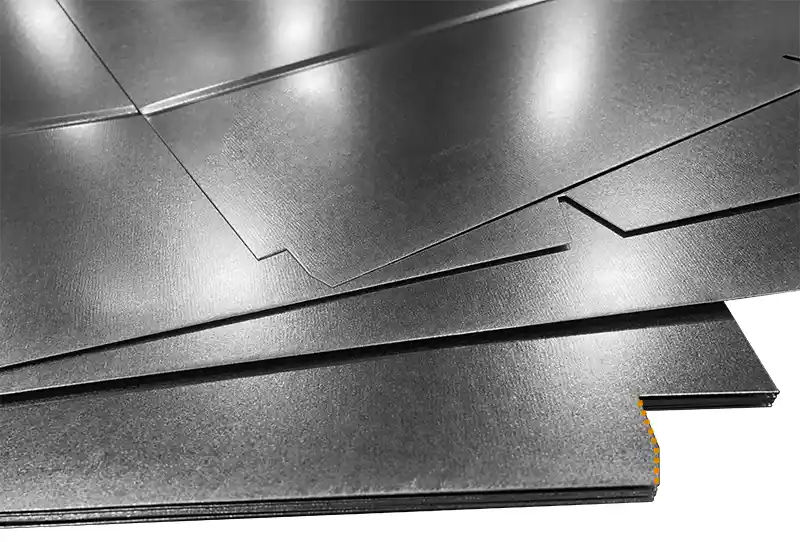

End Notch for Slip & Drive Duct will have shorter depth than TDC/F Duct

Once formed into Duct, the open spaces created by the bending Notches are filled by TDC/F Corners that serve as the means of connecting one duct section to another. The corners also fill that open space, finishing the Flange so it has a continuous run of metal on the end.

Side Note:

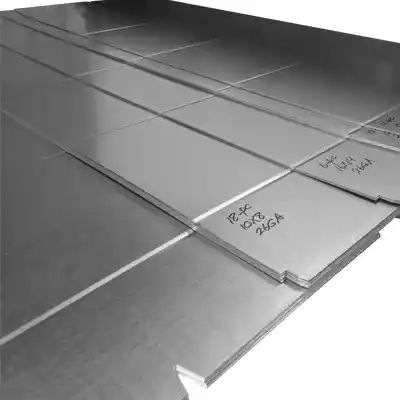

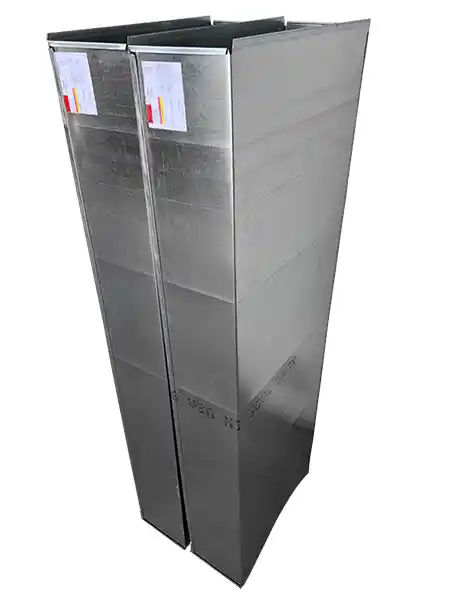

Conklin’s Orlando branch offers contractors the unique service of galvanized sheets that are blanked, beaded, and notched (BBN). For jobs with numerous straight duct runs, BBN provides significant savings in both material waste and labor for the duct fab shop, which only needs to run the locks, bend, and hammer together the Pittsburgh seams.
