• Performance is enhanced by a skin backing on the air leaving side of the media
• Improved aerodynamics reduce restriction to air flow
• Safe, easy, fast installation
• Larger effective filtering surface area
• Wide selection of standard sizes
• Classified Class 2 by Underwriters Laboratories, Inc.

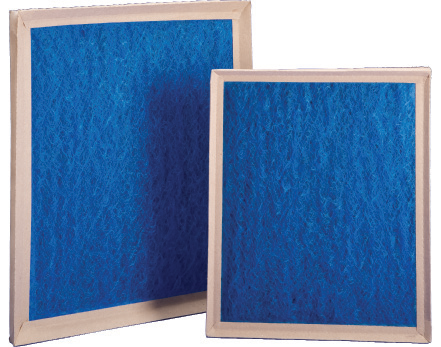

The F312 disposable panel filters are designed to withstand the demands of tough industrial and commercial applications. Purolator assures filter durability by utilizing construction features not found in traditional designs.
Frame – Purolator F312 frames are produced using post-consumer recycled materials. The unique Monobond pinch frame concept involves a one-piece frame sealed to the media under heat and pressure. This construction feature produces a continuous bond of media to board around the periphery of the frame, eliminating weak corners and air bypass. The use of a high tensile strength polyethylene binder increases the integrity of the seal, allowing the filter to withstand varying temperatures and humidity levels.
Media – Purolator F312 filters are manufactured with superior grade fiberglass media to guarantee full depth loading and high dust holding capacity. A computer-controlled manufacturing process assures a uniform gradient density pattern in the media. To enhance filtration capability and prevent migration of finer particles, the filter media has a skin backing and is evenly coated with a gelled adhesive.
Application – Purolator’s F312 filters perform best in conditions where large quantities of lint and dust are present. The rugged construction makes these filters industry leaders in the high velocity system, prefilter market.
10x10x1 #5038901307 Actual Size: 9-7/8″ X 9-7/8″ X 7/8″
10x25x1 #5038901022 Actual Size: 9 7/8″ x 24 5/8″ x 7/8″
12x18x1 #5038901027 Actual Size: 11 7/8″ x 17 7/8″ x 7/8″
12x30x1 #5038901029 Actual Size: 11 7/8″ x 29 7/8″ x 7/8″
14x20x1 #5038901312 Actual Size: 13 7/8″ x 19 5/8″ x 7/8″
15x20x1 #5038901313 Actual Size: 14 7/8″ x 19 5/8″ x 7/8″
16x16x1 #5038901309 Actual Size: 15 7/8″ x 15 7/8″ x 7/8″
10x16x1 #5038901020 Actual Size: 9 7/8″ x 15 7/8″ x 7/8″
10x30x1 #5038901023 Actual Size: 9 7/8″ x 29 7/8″ x 7/8″
12x20x1 #5038901314 Actual Size: 11 7/8″ x 19 5/8″ x 7/8″
14x14x1 #5038901031 Actual Size: 13 7/8″ x 13 7/8″ x 7/8″
14x24x1 #5038901308 Actual Size: 13 7/8″ x 23 3/4″ x 7/8″
15x25x1 #5038901034 Actual Size: 14 7/8″ x 24 5/8″ x 7/8″
16x18x1 #5038657912 Actual Size: 15 7/8″ x 17 7/8″ x 7/8″
10x20x1 #5038901301 Actual Size: 9 7/8″ x 19 5/8″ x 7/8″
12x12x1 #5038901025 Actual Size: 11 7/8″ x 11 7//8″ x 7/8″
12x24x1 #5038901311 Actual Size: 11 7/8″ x 23 3/4″ x 7/8″
14x16x1 #5038678091 Actual Size: 13 7/8″ x 15 7/8″ x 3/4″
14x25x1 #5038901306 Actual Size: 13 7/8″ x 24 5/8″ x 7/8″
16x20x1 #5039179361 Actual Size: 15 7/8″ x 19 5/8″ x 7/8″
10x24x1 #5038901021 Actual Size: 9 7/8″ x 23 3/4″ x 7/8″
12x16x1 #5038901026 Actual Size: 11 7/8″ x 15 7/8″ x 7/8″
12x25x1 #5038901315 Actual Size: 11 7/8″ x 24 5/8″ x 7/8″
14x18x1 #5038656628 Actual Size: 13 7/8″ x 15 7/8″ x 7/8″
14x30x1 #5038901033 Actual Size: 13 7/8″ x 29 7/8″ x 7/8″
15x30x1 #5038901035 Actual Size: 14 7/8″ x 29 7/8″ x 7/8″
16x24x1 #5038901038 Actual Size: 15 7/8″ x 23 3/4″ x 7/8″
20x30x1 #5038902001 Actual Size: 19-5/8″ x 29-7/8″ x 7/8″
21.5×21.5×1 #5038978095
22x22x1 #5038901047 Actual Size: 21-15/16″ x 21-15/16″ x 7/8″
18x20x1 #5038901042 Actual Size: 17-7/8″ x 19-5/8″ x 7/8″
18x24x1 #5038901043 Actual Size: 17-7/8″ x 23-3/4″ x 7/8″
18x25x1 #5038901310 Actual Size: 17-7/8″ x 24-5/8″ 7/8″
16x20x2 #5039002002 Actual Size: 15-5/8″ x 1-3/4″ x 19-5/8″
24x24x2 #5039002007 Actual Size: 23-3/8 x 23-3/8 x 1-3/4
16x30x1 #5038901040 Actual Size: 15-7/8″ X 29-7/8″ X 7/8
16x25x1 #5039179363 Actual Size: 15 7/8″ x 24 5/8″ x 7/8″
18x18x1 #5038901041 Actual Size: 17 7/8″ x 17 7/8″ x 7/8″
18x30x1 #5038902070 Actual Size: 17 7/8″ x 29 7/8″ x 7/8″
20x20x1 #5039179358 Actual Size: 19 5/8″ x 19 5/8″ x 7/8″
20×22.25×1 #5038901045 Actual Size: 19-5/8″ X 22-1/4″X 7/8″
20x24x1 #5038901046 Actual Size: 19 5/8″ x 23 3/4″ x 7/8″
20x25x1 #5039179366 Actual Size: 19 5/8″ x 24 5/8″ x 7/8″
24x24x1 #5038901316 Actual Size: 23 3/4″ x 23 3/4″ x 7/8″
24x30x1 #5038901049 Actual Size: 23 3/4″ x 29 7/8″ x 7/8″
25x25x1 #5038901317 Actual Size: 24 5/8″ x 24 5/8″ x 7/8″
10x20x2 #5039003244 Actual Size: 9 5/8″ x 19 5/8″ x 1 3/4″
12x24x2 #5039002006 Actual Size: 11 3/8″ x 23 3/8″ x 1 3/4″
14x20x2 #5039003245 Actual Size: 13 5/8″ x 19 5/8″ x 1 3/4″
14x25x2 #5039003246 Actual Size: 13 5/8″ x 24 5/8″ x 1 3/4″
15x20x2 #5039003247 Actual Size: 14 5/8″ x 19 5/8″ x 1 3/4″
16x16x2 #5039003248 Actual Size: 15-5/8″ X 15-5/8″ X 1-3/4″
16x20x2 #5039179356 Actual Size: 15 5/8″ x 19 5/8″ x 1 3/4″
16x24x2 #5039003249 Actual Size: 15 5/8″ x 23 5/8″ x 1 3/4″
16x25x2 #5039179355 Actual Size: 15 5/8″ x 24 5/8″ x 1 3/4″
18x24x2 #5039067667 Actual Size: 17 5/8″ x 23 5/8″ x 1 3/4″
20x20x2 #5039179351 Actual Size: 19 5/8″ x 19 5/8″ x 1 3/4″
20x24x2 #5039003250 Actual Size: 19 5/8″ x 23 5/8″ x 1 3/4″
20x25x2 #5039178230 Actual Size: 19 5/8″ x 24 5/8″ x 1 3/4″
25x25x2 #5039003251 Actual Size: 24 3/8″ x 24 3/8″ x 1 3/4″
